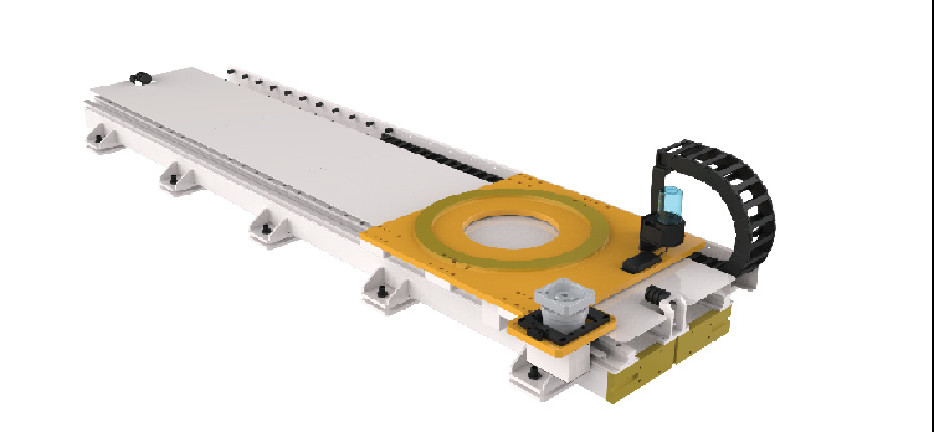

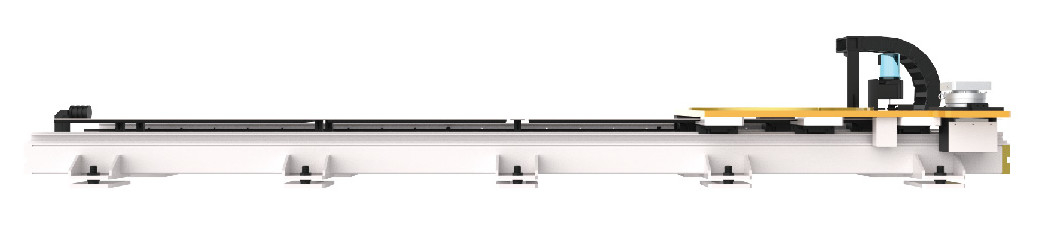

High precision guide rails are used in industrial automation and assembly line stations
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
The robots adapted to the guide rail include ABB IRB1200, IRB1410, IRB2600,IRB4600, IRB6700 and IRB7600 robots, KUKA's kr210, kr120, kr10, kr10, kr20, kr50 and kr70, FANUC M10, M20, m710, M1000 and M2000, Yaskawa GP7, GP8, GP12, GP25, AR2010, GP50, GP88, BA200l, GP255 PL900 and pl300.
Our robot guide rail is mainly composed of well-known brands such as Omron, THK and alpha in Germany. The guide rail has stable performance and low price.
Our company also provides industrial robots with very favorable prices to place orders together at a lower price.
Welcome to Shanghai, China, to investigate our robots and guide rails!

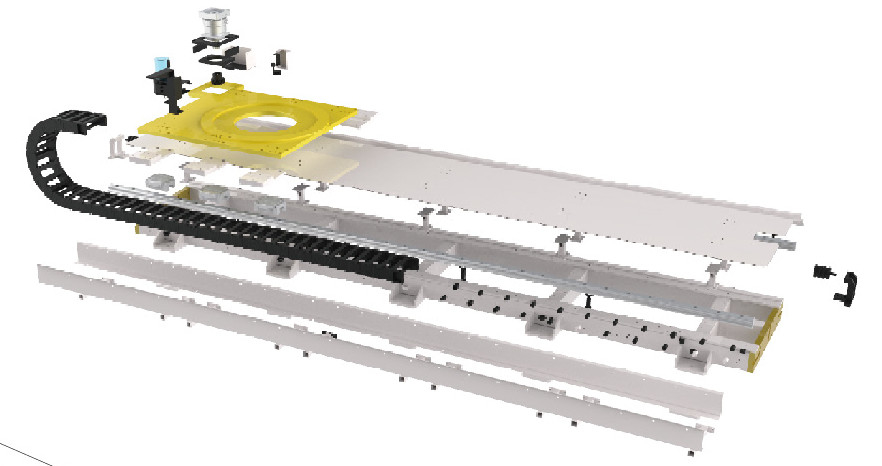

product details
| NO | Name | Brand/Specification | Remarks |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer | Provided by the seller |
| 2 | Planetary reducer | SHIMPO Japan | Provided by the seller |
| 3 | linear guide rail | HIWIN TaiWan HGH45 | Provided by the seller |
| 4 | Slide block | HIWIN TaiWan HGH45 | Provided by the seller |
| 5 | Rack and pinion | China TaiWan YCC Helical gear | Provided by the seller |
| 6 | lubrication system | YOUNGYOU 1L | Provided by the seller |
| 7 | Dust cover | GBS/Semi enclosed sheet metal type/Organ style | Provided by the seller |
| 8 | Hard limit elastic buffer | YOUNGYOU | Provided by the seller |
| 9 | Robot mounting plate | GBS/1200*1000*30mm | Provided by the seller |
| 10 | Ground connecting plate | YOUNGYOU | Provided by the seller |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm | Provided by the seller |
| 12 | Reducer connecting flange | YOUNGYOU | Provided by the seller |
| 13 | Servo motor | ①linkage Robot external axis | Provided by the seller |
| ②Non linkage servo motor | Provided by the seller | ||
| 14 | Adjusting bolt | M15 fine pitch thread | Provided by the seller |
| 15 | Limit sensor | Japan Omron | Provided by the seller |

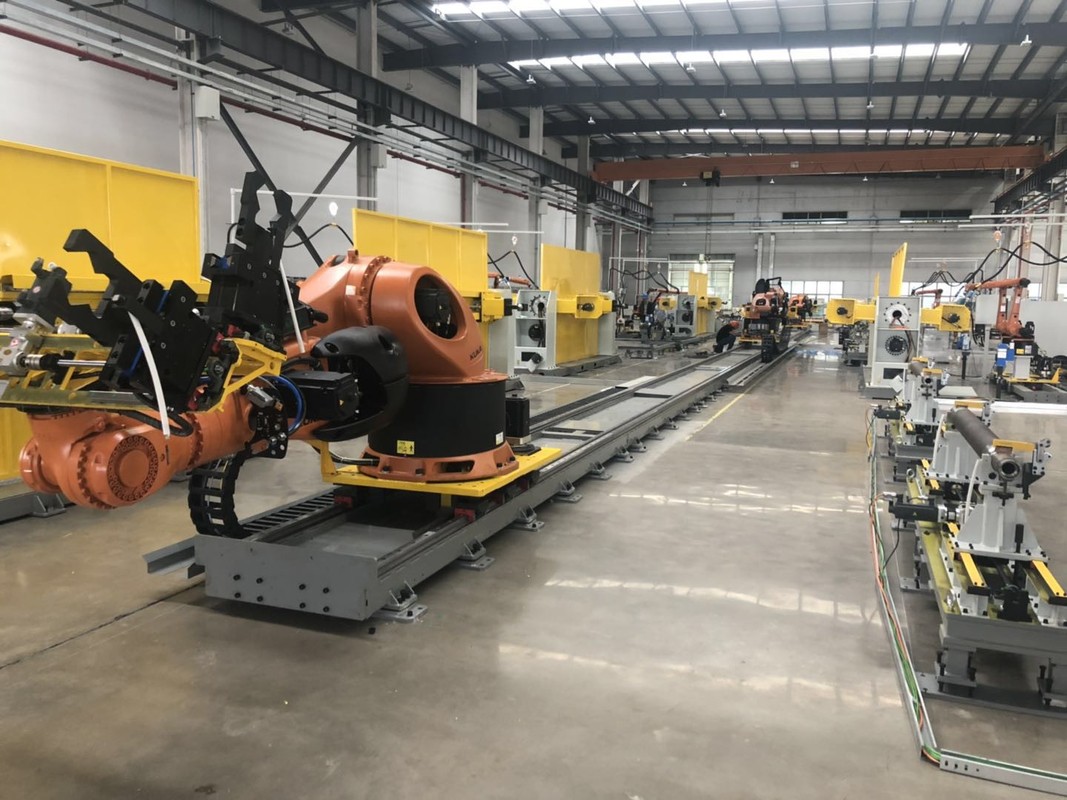

Application case
Brands, specifications and parameters of main components
Guide rail configuration suggestions
Packaging and transportation
