Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm

Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm

abb smart gripper

gripper abb torque 5-100Nm

robot gripper grabber

Place of Origin:

CHINA

Brand Name:

YOUNGYOU

Certification:

CE

Model Number:

YYSC10

Contact Us

Request A Quote
Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm
Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm
Product Details
Mechanical System:
Maintenance-free
Weight:
1.95kg
L*W*H:
120mm X 100mm X 100mm
Connections:
100 - 240V AC, 6-2,5 A, Compressed Air 5 - 6,5 Bar
Remote Maintenance:
Integrated
Software Updates:
Online
Payment & Shipping Terms
Minimum Order Quantity
2
Price
800
Packaging Details
Foam protection+carton packaging
Payment Terms
L/C, T/T
Supply Ability
100 sets/ month
RELATED PRODUCTS
Good price Increase precision with Robotic Arm Gripper - ±0.02mm position repetition accuracy online

Increase precision with Robotic Arm Gripper - ±0.02mm position repetition accuracy

Get Best Price
Good price High IP level Robotic Arm Gripper with low running noise 40dB online

High IP level Robotic Arm Gripper with low running noise 40dB

Get Best Price
Good price Low Running Noise Robotic Arm Gripper with IP Level IP65 Optional online

Low Running Noise Robotic Arm Gripper with IP Level IP65 Optional

Get Best Price
Good price Quiet Operation Robotic Arm Gripper for Temperature Range 5-40 ℃ online

Quiet Operation Robotic Arm Gripper for Temperature Range 5-40 ℃

Get Best Price
Contact Us
86-199-4568-4126
autocell@163.com
86-021-5688-5611
Contact Now
Product Description

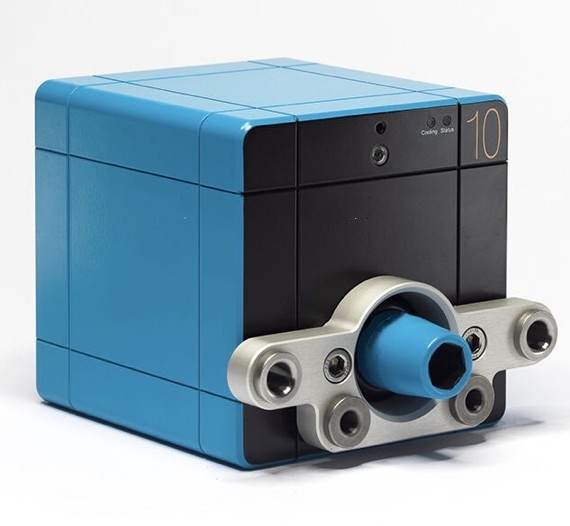

Flexible and individually controlled torque 5 - 100Nm with ABB robot gripper could OEM



Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm 0

Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm 1

Smart Abb Robot Gripper Grabber Flexible Individually Controlled Torque 5-100Nm 2

Product characteristics

 torque: 5 - 100Nm

The flexible torque is selected in advance, between 5 and 100 Nm, and applied automatically.

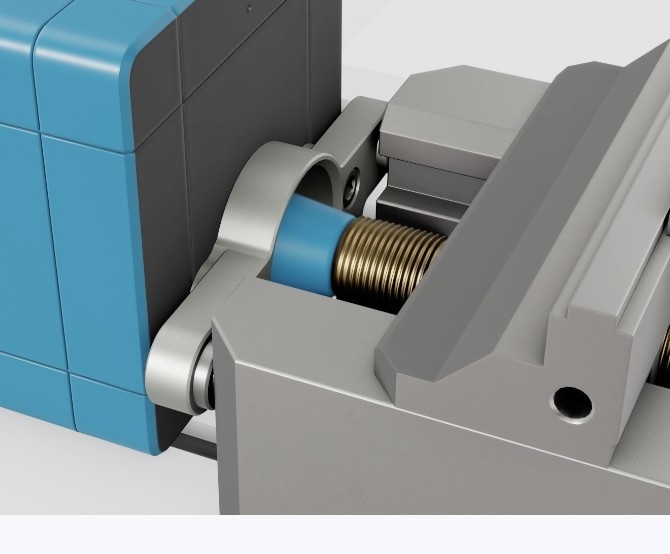

Controlled opening width:

You can determine the desired opening width of the vise in advance based on the spindle revolutions on the vise.



Quick closing and opening times: approx. 5 seconds

Operating mode: electric
Drive: spin socket

For different wrench sizes and head shapes



Docking Plate: quickly and easily convertible

Compatible with vises from different manufacturers



Blow-off nozzle: integrated

The compressed air is used to remove chips and coolant from the workpiece and vise.



Robot interfaces:
analog/digital or Profinet
