Place of Origin:
GERMANY
Brand Name:
KUKA
Certification:
CE
Model Number:
LBR iiwa 7 R800 RAL 9016
Contact Us

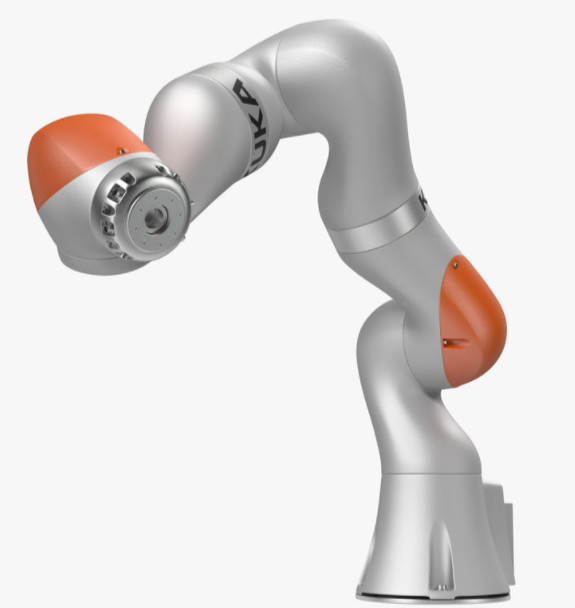

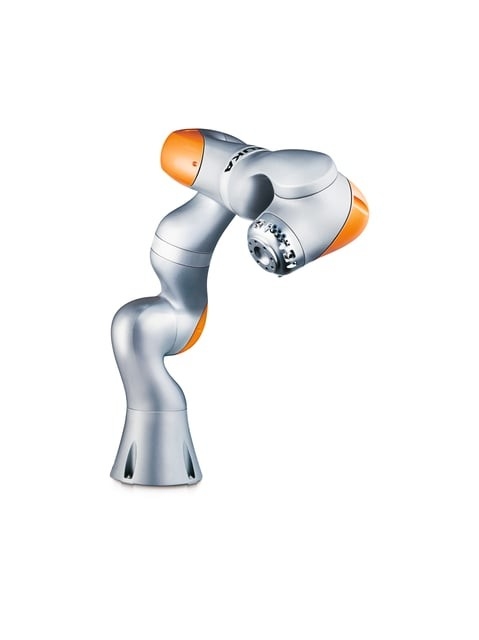

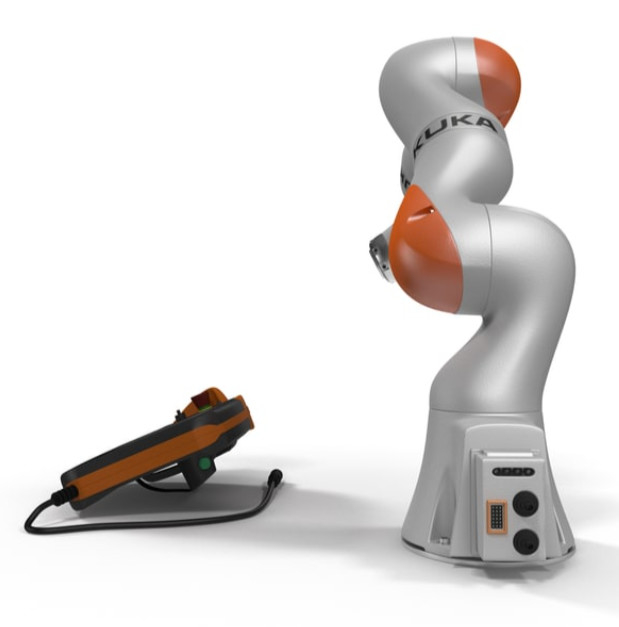

Application of 7kgLBR iiw Small Robot in Automobile Production Line Operation
sensitive
As a lightweight high-performance control device, LBR iiwa can quickly recognize contours through power control. It senses the correct installation position and quickly installs the workpiece with high accuracy, and the torque accuracy related to the shaft reaches ± 2% of the maximum torque. Even without your help, LBR iiwa can immediately find miniature workpieces.
independent
Even for complex debugging tasks, the KUKA Sunrise Cabinet control system of the lightweight robot LBR iiwa can be easily and quickly debugged. You can make it a helper for humans and enable it to reliably and independently complete a single task that does not conform to ergonomic design.
The Future Robotics Factory is located in Cologne
On the Ford production line, LBR iiwa robots collaborate with humans to install high-performance shock absorbers for the beloved Ford Fiesta. If traditional automation solutions are adopted, it is difficult to complete this task.
Traditional automation solutions require operators to independently complete repetitive tasks that require high technical requirements and do not conform to ergonomics in a fast-paced work environment.
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| ITEM | VALUE |
| Applicable Industries | Applying/Painting/Glueing |
| Assembly | |
| Handling | |
| Human-robot collaboration | |
| Machining | |
| Measuring/Inspection | |
| Palletizing/packaging | |
| After Warranty Service | Video technical support, Online support,Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Weight | 23.9kg |
| Technical service | Video technical support, Online support,Global official after-sales service |
| Weight (KG) | 23.9kg |
| Axis | 7 axis |
| Payload | 7kg |
| Reach | 800mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 98 °/s 98 °/s 100 °/s 130 °/s 140 °/s 180°/s 180 °/s |
| Repeatability | ±0.01mm |
| Protection rating | IP54 |
| Temperature range |
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Ambient temperature during stor./transp.
0 °C to 45 °C (273 K to 318 K)
|
Packaging and Transportation
Our company also produces other robot peripheral products, such as guide rails, turntables, pipe bundles, grippers, protective clothing, etc. Contact email: youngyou001@163.com .
