Place of Origin:
GERMANY
Brand Name:
KUKA
Certification:
CE
Model Number:

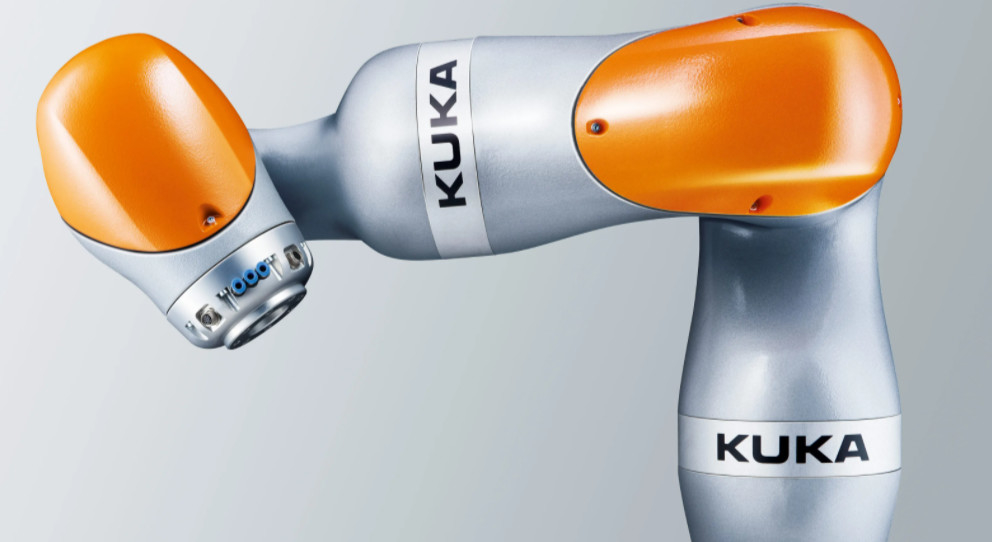

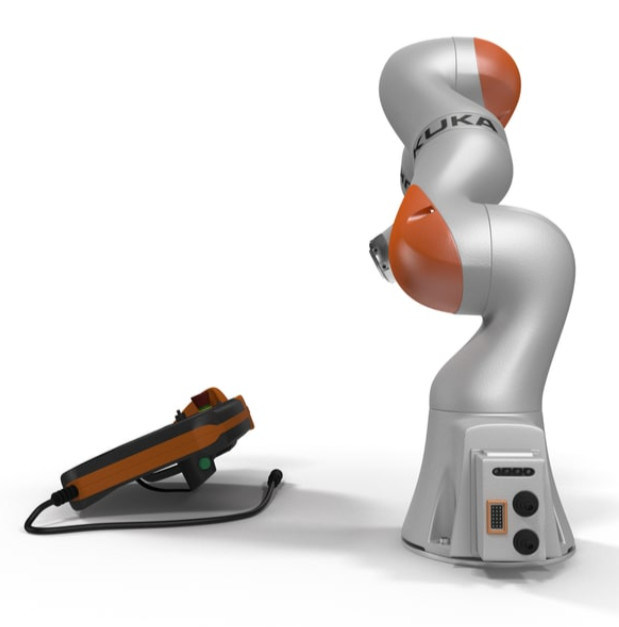

LBR iiwa 14 R820 CR
Contact Us
The Role of LBR iiwa Small Robot in Measurement and Inspection in Plastic Processing
Calibration on the Road to Industry 4.0
In the first step of the automated measurement process, LBR iiwa takes out the measurement device from a transportation unit. Next, the sensitive robot system feeds the measuring device into the reading machine in the correct position. In addition to scanning, the measuring device is also blown clean with air to remove dust and avoid measurement distortion. If the system recognizes the measuring device, LBR iiwa will fix it in the clamping device. The corresponding measurement program will be loaded and automated measurement will begin - i.e. calibration will follow Industry 4.0 closely. After the measurement process is completed, the robot picks up the measurement device again and places it in the second transport unit. Successfully calibrated certificates will be automatically created.
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
11111self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.On the application display platform, LBR iiwa takes out the component reels from the SIPLACE tower and places them in the desired order into the component trolley. Sensitive lightweight robots do not need to protect space when interacting with humans. The display of two applications became a highlight at our internal technology exhibition held in November 2015, "said Bernhard Fritz, head of the SMT technology center at ASM Assembly Systems. The primary goal of applying robots is to improve productivity while ensuring high quality.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touchin
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product parameters table
| ITEM | VALUE |
| Applicable Industries | Applying/Painting/Glueing |
| Assembly | |
| Handling | |
| Human-robot collaboration | |
| Machining | |
| Measuring/Inspection | |
| Palletizing/packaging | |
| After Warranty Service | Video technical support/ Online support/Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Weight | 29.9kg |
| Technical service | Video technical support/Online support/Global official after-sales service |
| Weight (KG) | 29.9kg |
| Axis | 7 axis |
| Payload | 14kg |
| Reach | 820mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 85 °/s 85 °/s 100 °/s 75 °/s 130 °/s 135°/s 135 °/s |
| Repeatability | ±0.15mm |
| Protection rating | IP54 |
| Temperature range |
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Ambient temperature during stor./transp.
0 °C to 45 °C (273 K to 318 K)
|
