Place of Origin:
GERMANY
Brand Name:
KUKA
Certification:
CE
Model Number:
LBR iiwa 14 R820 RAL 9016
Contact Us

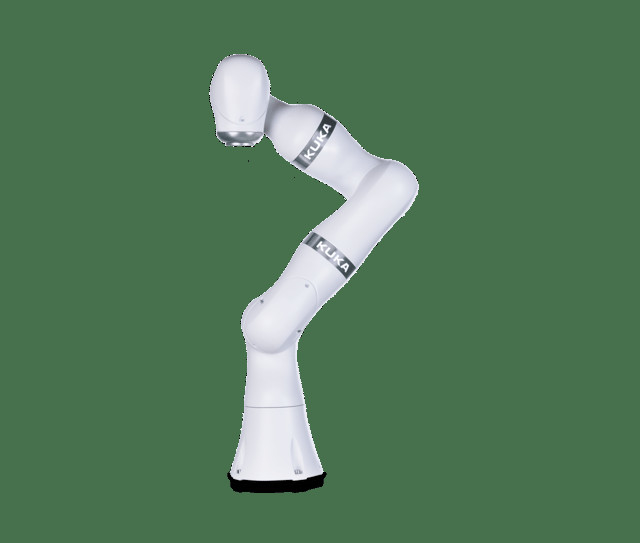

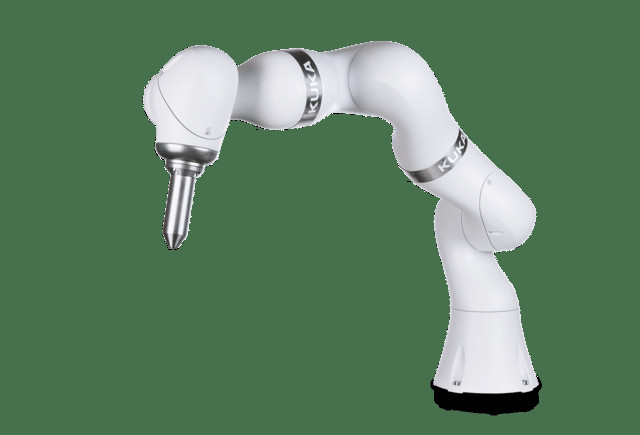

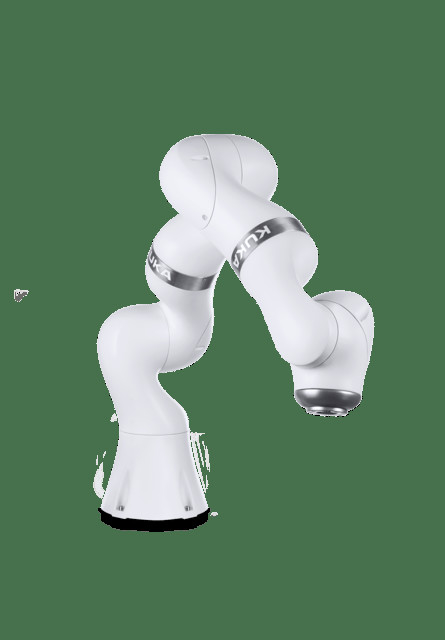

Accurate and efficient utilization of LBR-iiwa white small robot in professional measurement
LBR iiwa .a robot
Three controller options
In controller mode, the LBR iiwa operates as usual and moves to the desired position at the programmed speed.
In gravity compensation mode, it demonstrates its value as a valuable work assistant. It accurately compensates for the weight of the load, allowing it to be moved by applying the minimum external force.
The compliance of the controller mode LBR-iiwa can be configured for translation and rotation on all axes separately, thereby optimizing character adaptation. The characteristics of robots in specific tasks. You can also activate defined forces and superimpose them on the motion.
Options for flange plates
The drag chain system of external components is hidden in the motion system structure of LBR iiwa.
There are two types of drag chain systems: pneumatic and electric. The drilling drawings of all pneumatic medium flanges comply with the requirements of DIN ISO 9409-1-50-7-M6 standard.
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
11111self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.On the application display platform, LBR iiwa takes out the component reels from the SIPLACE tower and places them in the desired order into the component trolley. Sensitive lightweight robots do not need to protect space when interacting with humans. The display of two applications became a highlight at our internal technology exhibition held in November 2015, "said Bernhard Fritz, head of the SMT technology center at ASM Assembly Systems. The primary goal of applying robots is to improve productivity while ensuring high quality.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touchin
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product parameters table
| ITEM | VALUE |
| Applicable Industries | Applying/Painting/Glueing |
| Assembly | |
| Handling | |
| Human-robot collaboration | |
| Machining | |
| Measuring/Inspection | |
| Palletizing/packaging | |
| After Warranty Service | Video technical support/ Online support/Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Weight | 29.9kg |
| Technical service | Video technical support/Online support/Global official after-sales service |
| Weight (KG) | 29.9kg |
| Axis | 7 axis |
| Payload | 14kg |
| Reach | 820mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 85 °/s 85 °/s 100 °/s 75 °/s 130 °/s 135°/s 135 °/s |
| Repeatability | ±0.15mm |
| Protection rating | IP54 |
| Temperature range |
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Ambient temperature during stor./transp.
0 °C to 45 °C (273 K to 318 K)
|
