Place of Origin:
China
Brand Name:
YOUNGYOU
Certification:
UL CE
Model Number:
YY-01-01-W2500-002
Contact Us
video

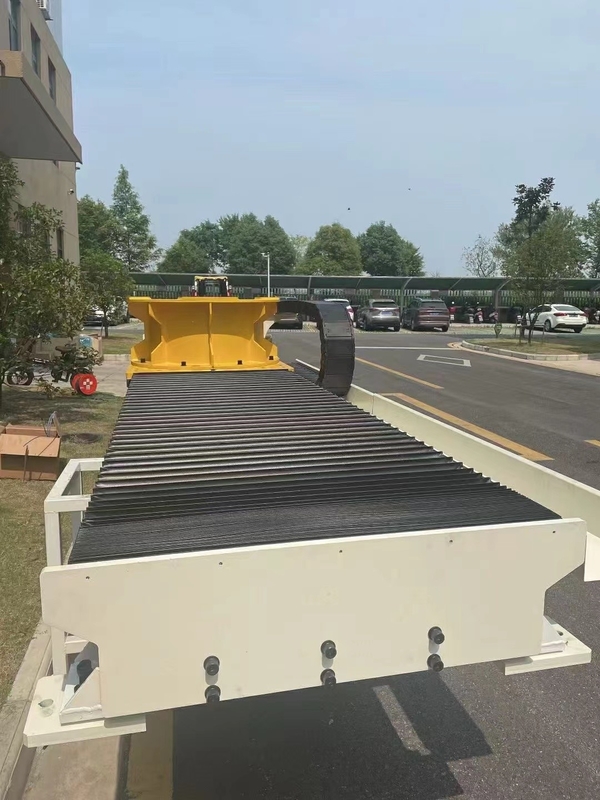

The 2500kg load high protective guide rail is suitable for pollution conditions
Advantage

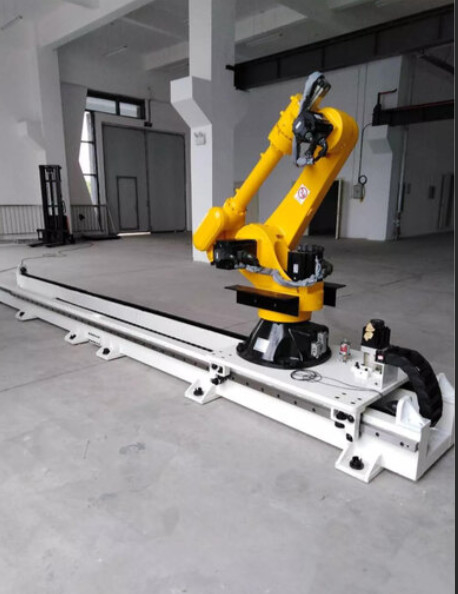

Industrial robots are responsible for the entire production process, including loading, clamping, and unloading, greatly improving the quality and aesthetics of the workpiece. Improved the instability of product quality in enterprises that previously used manual loading and unloading. The seventh axis of the robot adopts a fully servo power system, achieving the characteristics of fast speed, high accuracy, and good dust and dirt prevention performance.
Good self-protection
The seventh axis of the robot is not only limited to traditional clean industries, but can also be used in various polluting enterprises, such as adhesive coating enterprises, spot welding enterprises, industrial and mining enterprises, etc. This is because the seventh axis of the robot has good self-protection performance. Its external design adopts anti-corrosion design, and its internal design strength is high, which can resist external forces, as well as prevent dust and industrial dust.
Strong power
It has the characteristics of high repeated positioning accuracy, fast response speed, smooth operation, and reliability
Mainly used in industries such as welding, casting, mechanical processing, intelligent warehousing, automotive, aerospace, etc
About the company

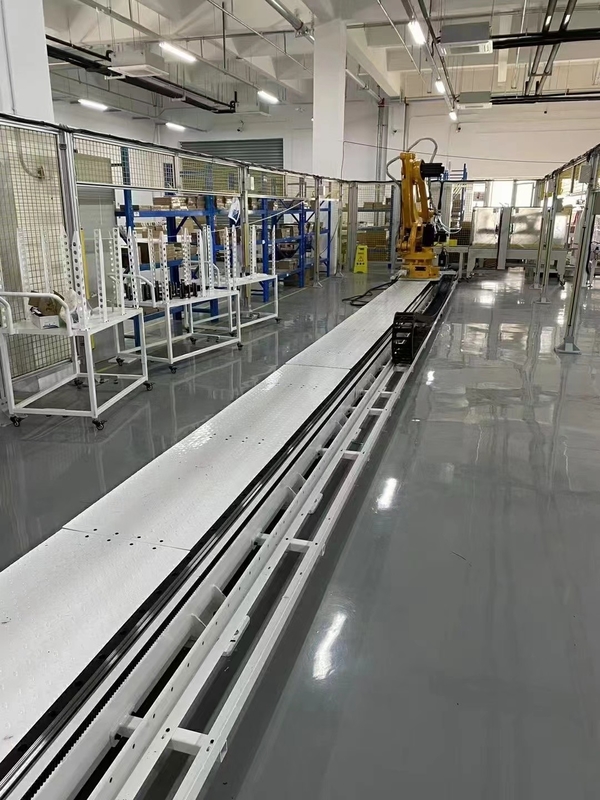

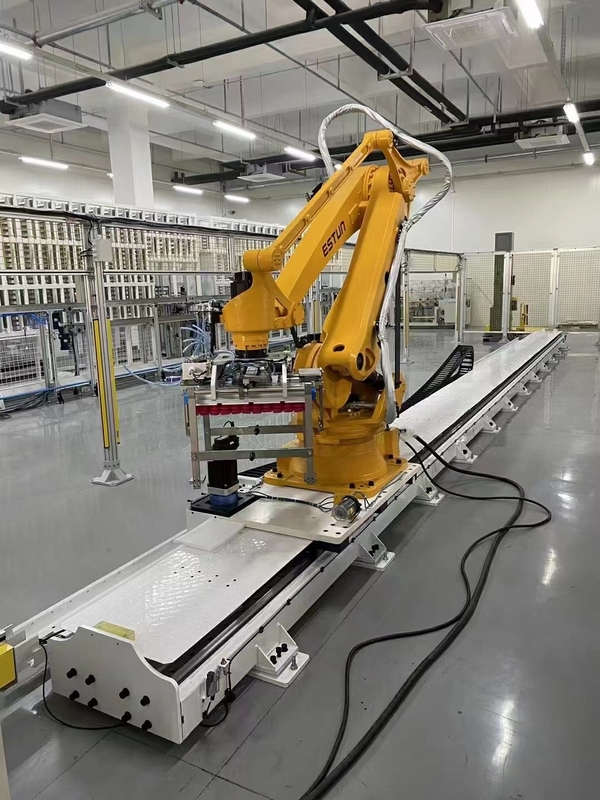

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
Packaging and Transportation
