The Application of Classic XY Axis Screw Guide Mechanism in Medical Profession
1. Linear guide rail
Linear guide rail, also known as slide rail, linear guide rail, or linear guide rail, is used in situations of linear reciprocating motion. It has a higher rated load and linear motion accuracy than linear bearings under the same volume of motion components. At the same time, it can bear a certain torque load and achieve high-precision linear motion under high loads.
Linear guide rails are used to support and guide moving components, performing reciprocating linear movements in a given direction. Mainly used in mechanical structures with high precision requirements. The moving and fixed components of the linear guide rail do not use intermediate media, but use rolling steel balls.
2. Characteristic characteristics
Feature 1: The slide rail and slider are in contact with each other through ball bearings, resulting in minimal shaking and suitable for equipment with precision requirements.
Feature 2: Due to point to surface contact, the frictional resistance is very small, allowing for subtle movements and achieving high-precision positioning of control devices.
Feature 3: Because the ball has its own rolling groove and the force on the rotating surface will be dispersed, it has a large allowable load.
Feature 4: Linear guide rails are less prone to generating frictional heat and deformation during operation, making them suitable for high-speed movements.
3. Application of Linear Guideway
case
Position switching guide mechanism
The demand for miniaturized devices in the industry has emerged, saving device space.
The main features are: 1. Switching conveyor rails (3 positions) through cylinder drive. 2. Three positions have been determined based on the stroke difference and inner diameter difference of two cylinders
About the company

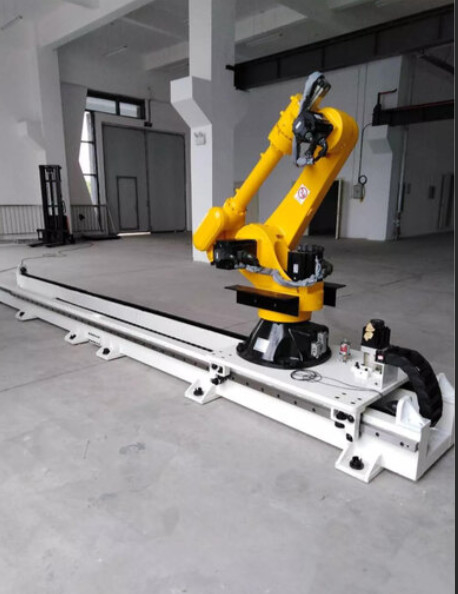

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
