Place of Origin:
China
Brand Name:
YOUNGYOU
Certification:
UL CE
Model Number:
YY-01-01-W2500-002
Contact Us
video

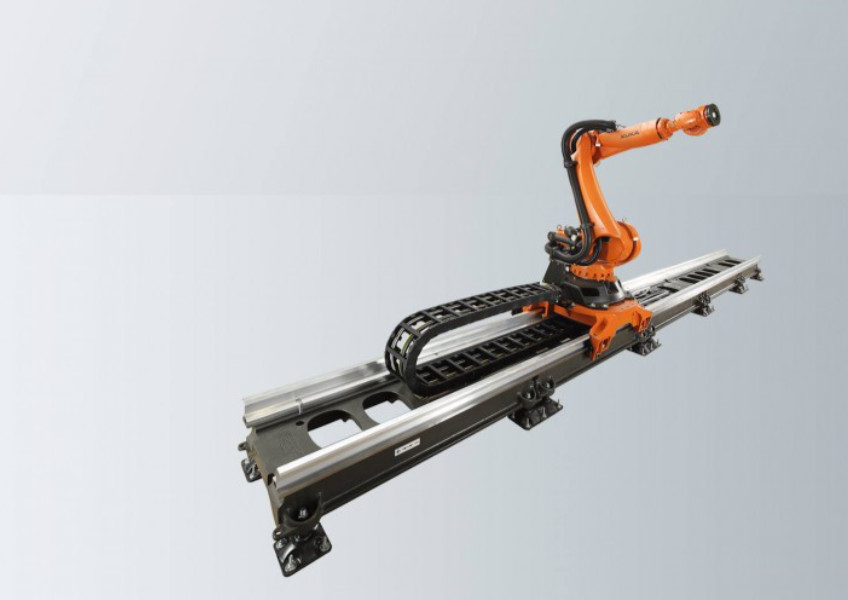

Flexible and adjustable backlash linear slide rail with high accuracy and reliability
Optimized installation method
By adopting a new foundation fixation scheme that is fixed through a flexible threaded connection system, you can install it without the need for welding at all. Therefore, it can save time during installation. In addition, the shaft can be readjusted at any time.
Reduction in required venue

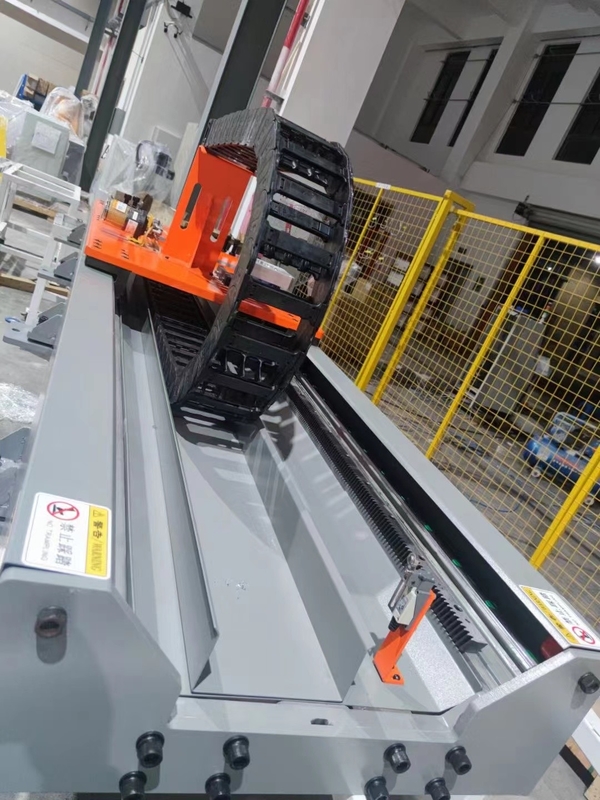

The built-in cable drag chain has a travel of 8.4 meters and can be used for up to two sliding platforms. Reduced the footprint of the linear slide. At the same time, the length reaches 31.5 meters when the journey is 30.4 meters, achieving a larger working range for you.
Easy to maintain and repair
The special arrangement of the motor and gearbox allows you to replace it without dismantling the robot. Similarly, you can easily and quickly replace the rollers in different positions. The flexible and adjustable backlash and optional long-lasting lubrication device ensure high reliability.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
product details
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
Application case
Brands, specifications and parameters of main components
Guide rail configuration suggestions
Packaging and Transportation
