Standard guide rails suitable for spot welding in automated chemical plants
PRODUCT DESCRIPTION
The standard ground rail is driven by a servo motor and transmitted through precision reducers, gears, and racks, ensuring stable movement and high precision in repeated positioning.
The maximum carrying capacity of the equipment can reach 8000KG, the maximum speed can reach 3m/s, and the number of carrier plates can be configured as needed. The product has a rich selection of components, which can be customized according to your needs, including motors, tracks, racks, drag chains, etc; As needed, you can choose to drag the chain edge or center.
The standard LM rail is used as the guidance system, which has extremely high rigidity and accuracy, strong equipment load capacity, and long service life; Alternatively, a roller group can be selected as the guiding system, which is highly insensitive to impurities such as welding slag and chips in the environment. Even if there is a slight error in installation, the selected large diameter roller can still operate easily and has good passability.
The equipment adopts a segmented module design, which can be easily assembled and spliced, and can easily meet the length requirements within 50m. Longer equipment requirements can also be customized.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
product details
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |

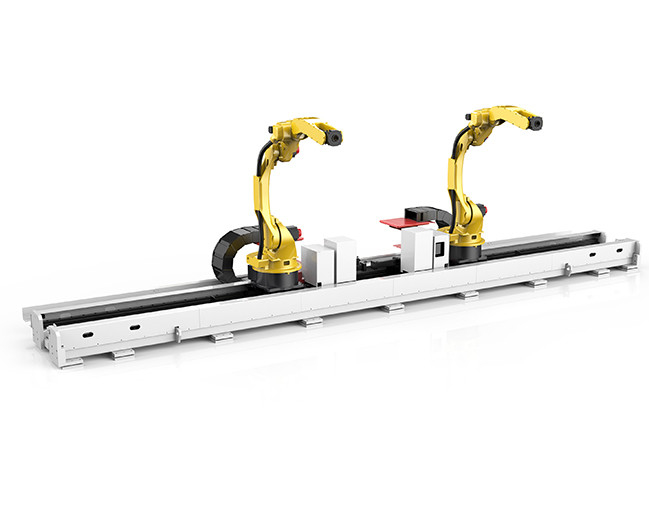

PRODUCT RENDERINGS
