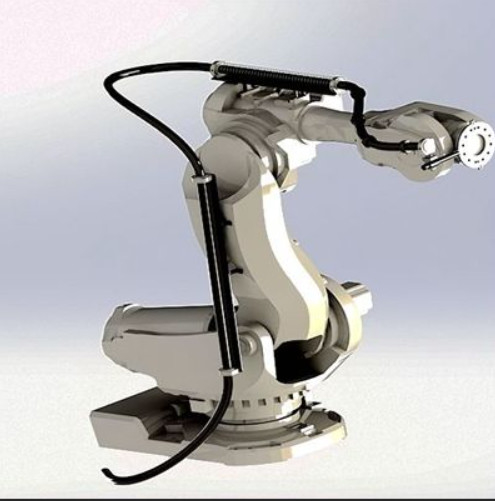

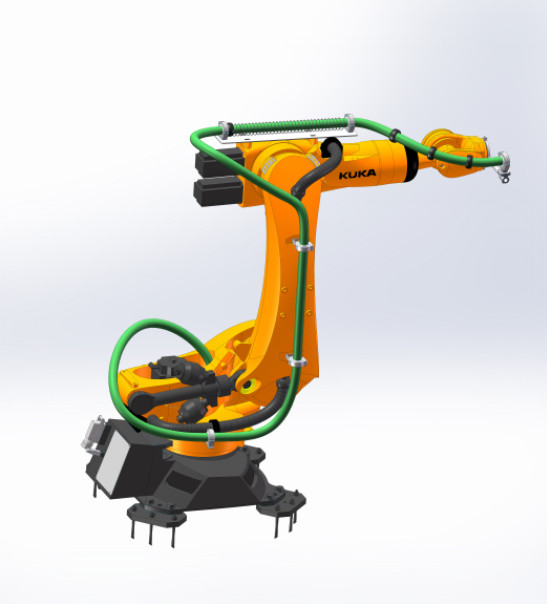

Pipe Robot Packs High Tensile Connection Strength Various Welding Operations

Pipe packages with high tensile connection strength for various welding operations

Advantage

All types
The inner diameter of the pipe is 7mm-170mm, and the outer diameter ranges from 10mm-193mm, making it capable of manufacturing all types of hoses
superior quality
100% compliance with Japanese Industry (JIS) and American Society of Materials (ASTM) standards through ISO quality management system standards
High performance
We can produce various types of hoses with special properties such as pressure resistance, impact resistance, high temperature resistance, long-term resistance to alternating bending, chemical resistance, anti-static, flame retardant, fire prevention, explosion-proof protection, weather resistance, wear resistance, etc. according to the special needs of customers.
Widely applied
Widely used in fields such as robotics and automation, railways, automobiles, shipbuilding, electronics, optoelectronics, communication, military, power, medical, machinery, construction, municipal pipelines, and fire safety.

High flexibility
The developed PA12 and PUR material hoses are resistant to wear, vibration, good weather resistance, excellent tensile connection strength, and can withstand over 30000000 cycles of alternating bending for a long time

Strong impact resistance
-At a low temperature of 18 ℃, it also has good impact resistance and compressive strength. The pipe material has a full load impact resistance of>22.5 Joule, a compressive strength of>320N/50mm, and is resistant to corrosion such as ethanol, gasoline, diesel, etc. It is flame retardant and halogen-free and self extinguishing

Above standard
IP protection level, flame retardant level, alternating bending test, fire resistance test, tensile and impact test, all confirmed through IEC testing.

Material: Specially modified polyurethane

Free of halogen and cadmium

Excellent chafing properties

Temperature range: -60C-90C

FPUR/FPURV
Highly flexible,medium/ heavy-duty
Produced from specially modified polyurethane.Conduit type with low mechanical strength, allowing verytight bending radius. Extreme flexibility and particularly goodchafing resistance (e.g. axes 5 and 6 in robotic installations).

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product related parameters

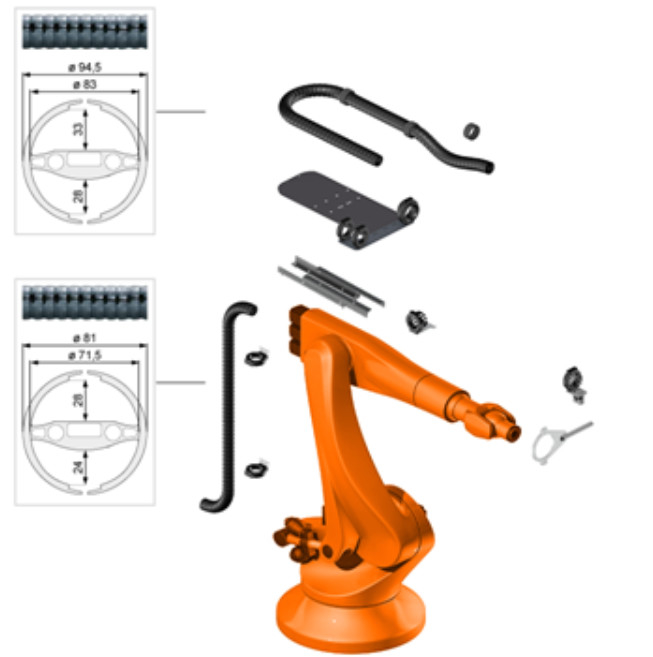

Product Plan Diagram

Packaging and Transportation
