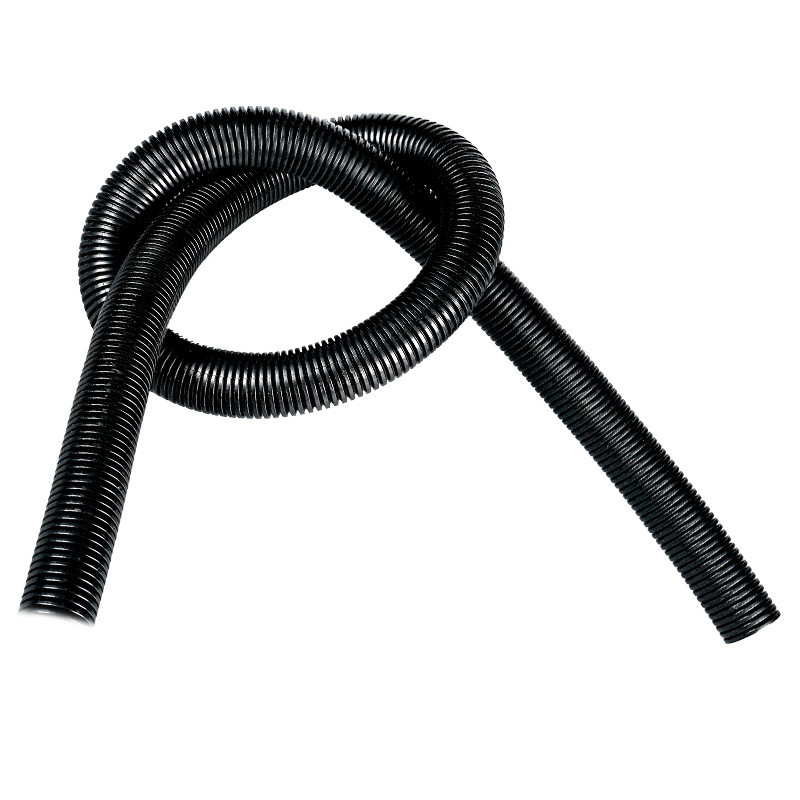

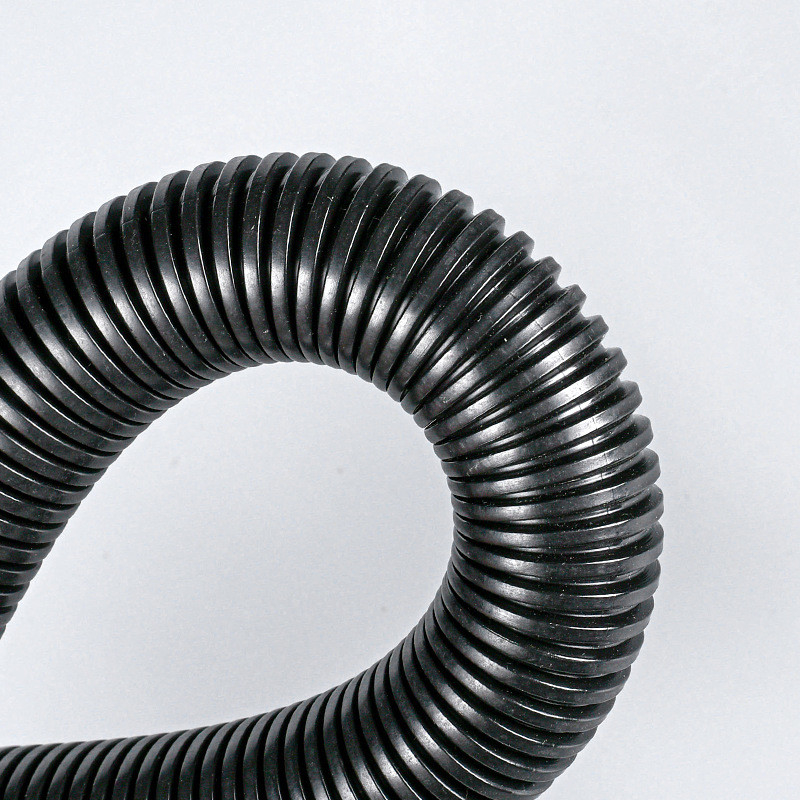

Dresspack Robot Arm Protective Sleeve Insulated PUET Robot Corrugated Hose

Insulated PUET material robot corrugated hose robotic arm protective sleeve

Related Introduction

The corrugated pipe serves as an outer sheath to protect the cable, and friction balls are used to protect the vulnerable parts on the outer side of the corrugated pipe. For applications with complex functions, spring expansion devices will be added to the corrugated pipe to ensure that the pipeline conforms to the robot as much as possible and is easy to debug. The same applies to the CPP pipeline package of Shanghai Fanaco. Another method is to use wear-resistant materials (usually wear-resistant and high-temperature resistant fabrics) to wrap the pipeline, and add a C-shaped flange on the robot flange. The pipeline finally comes into contact with the C-shaped flange through a bracket and spring. This solution has been adopted by some robot manufacturers, but due to its exquisite structure and high requirements for wiring harnesses, the technical difficulty of implementation is high, and maintenance personnel need to strictly follow the technical requirements for maintenance, So compared to corrugated pipe pipeline packages, they are relatively rare. The following figure shows two pipeline package products from Shanghai Fanuc, mainly used for spot welding and handling applications.

Excellent resilience
Soft and resilient, with a glossy surface, resistant to fatigue, protecting cables and wires from external wear and insulation

Stable performance
Both the interior and exterior are wavy with excellent fatigue resistance, electrical insulation, corrosion resistance, aging

resistance, and long service life

Strict inspection
We strictly require product quality and strict testing for every product to ensure you have no worries when shopping

FPUR/FPURV
Highly flexible,medium/ heovyduty
Produced from specially modified polyurethane.Conduit type with low mechanical strength, allowing verytight bending radius. Extreme flexibility and particularly goodchafing resistance (e.g. axes 5 and 6 in robotic installations)

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product related parameters

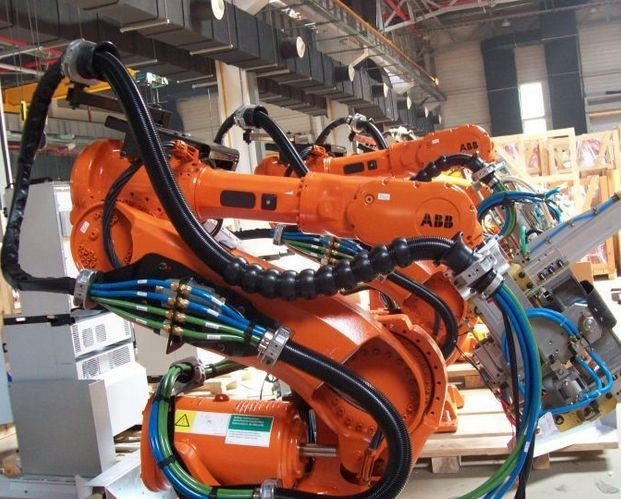

Robot pipeline package usage diagram

Packaging and Transportation
