Place of Origin:
Germany
Brand Name:
ABB
Certification:
CE
Model Number:
IRB 8700
Contact Us
video
video

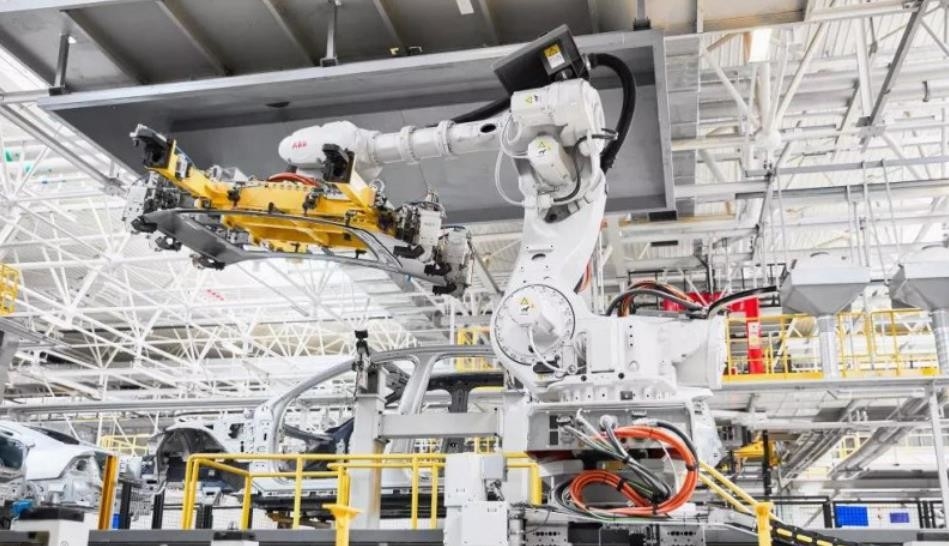

The IRB 8700 robot is suitable for palletizing and welding in automotive factories
IRB 8700 robot with a load of 800kg welding in BJEV automotive factory workshopThe IRB 8700 combines reliability and cost-effectiveness in design, with simple and durable component configurations. It combines decades of ABB's professional experience to meet customers' high-performance requirements for robots while also reducing maintenance costs overall. In addition, compared to other robots in the same level, the operating speed of the IRB 8700 has increased by 25%.
Features and advantages:
When the robot wrist is vertically downwards, the maximum load can reach 1000 kg
Running speed 25% faster than products of the same level
Simple and reliable design with Foundry Plus 2 protection level
Supports LeanID technology, reduces cable pack wear, and is easy to simulate
Production using harmless materials
Reliable Performance
The IRB 8700 design is simple and intuitive, using high-quality components, effectively extending the lifespan of the cable pack through LeanID technology, and based on ABB Foundry Plus 2 protection standards, achieving ultra long running time, making it an ideal choice for all-weather production.
Simple design
The IRB 8700 is only equipped with one motor and one set of transmission devices per axis, while most other robots in the same level are equipped with dual motors and/or dual transmission devices. In addition, IRB 8700 is mainly balanced by safety counterweight and mechanical spring, which can avoid potential safety hazards such as air leakage caused by Gas Spring. Through the above design, IRB8700 has a lower total number of components, resulting in lower failure rate, faster beat, and higher accuracy.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| Specifications | ||||
| Robot model | working range (m) | Handling load (kg) | Center of gravity (kg) | Wrist torque (Nm) |
| LeanID cable pack not included | ||||
| IRB 8700-800/3.50 | 3.5 | 800** | 460 | 6043 |
| IRB 8700-550/4.20 | 4.2 | 550 | 460 | 5279 |
| Including LeanID cable pack | ||||
| IRB 8700-800/3.50 | 3.5 | 630 | 460 | 6043 |
| IRB 8700-550/4.20 | 4.2 | 475 | 460 | 5279 |
| Number of axles | 6 | |||
| Protection standard | IP67/Foundation Plus 2 | |||
| Installation method: | floor mounted | |||
| Controller | IRC5 single control cabinet | |||
| *All models can carry additional loads. The upper arm can load 50kg, and the axle 1 frame can load 250kg. | ||||
| **When the robot wrist is vertically downwards, the load can reach 1000 kg. | ||||
Product parameters table
