Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE
Model Number:
hand-e
Contact Us

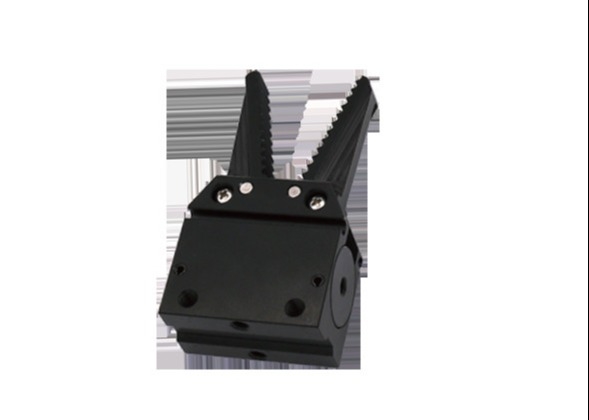

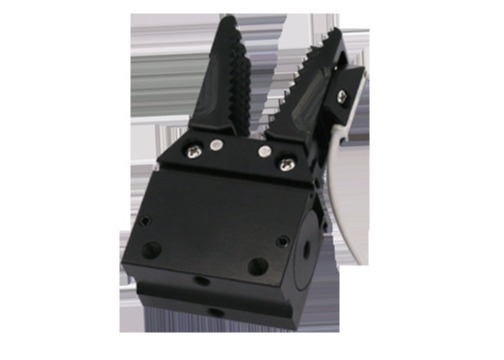

Load 5kg and clamping force 20-185N robot arm hand-e two finger electric claw

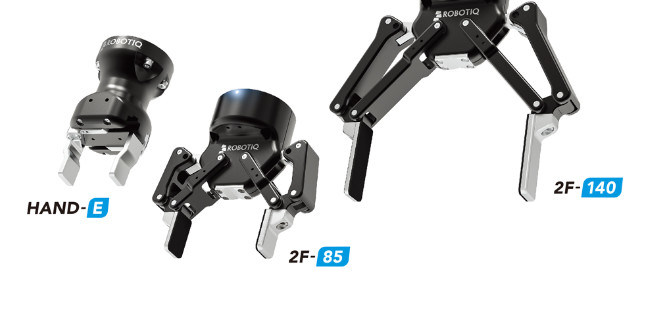

Electric gripper series: Two finger electric grippers 2F-85, 2F-140, Hand-E, and three finger electric grippers
The gripper is designed specifically for the physical manufacturing industry and adapts to complex industrial environments. It can coordinate with robotic arms to complete various tasks like humans, greatly improving the versatility, intelligence, and ability to handle complex tasks of robots.
The three finger gripper is highly flexible and can grip various shapes and sizes of parts. Directly control the position, speed, and strength of the fingers. Communicate with the robot controller through the following methods: Modbus RTU, Modbus TCP, EtherNet/IP, PROFINET, EtherCAT, DeviceNet, CANopen.
Three Finger Claw Features:
1. Four types of traction: pinch mode, wide mode, scissors mode and basic mode. You can choose almost anything.
2. Control fingers separately: Obtain feedback from each finger to obtain firm grip and accuracy.
3. Plug and Play: With our three finger grippers, you can install and program your robot in just a few minutes.
4. Project Innovation: Inspired by using examples of our fixtures and sensors. Remote operation, human-machine collaboration, mobile robots, box picking, supporting and advanced assembly.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Specifications | Parameter |
| Travel (programmable) | 155 mm |
| Clamping force (programmable) | 30-70 N |
| Conformal grip load | 10 kg |
| Friction grip load | 2.5 kg |
| Finger position repetition (fingertip grasping) | 0.05 mm |
| Closing speed (programmable) | 22-110mm/s |
| Fixture quality | 2.3 kg |
| Main communication protocols | Modbus RTU(RS-485) |
| Secondary communication protocol options | Modbus TCPEtherNet/IPPROFINETEtherCAT,DeviceNet,CANopen |
Product parameters table
