Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE
Model Number:
hand-e
Contact Us

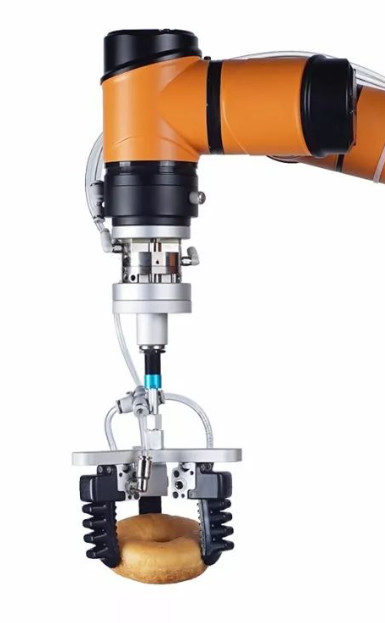

Silicone molded flexible gripper with clamping range of 0-160mm and self weight of 1kg
Flexible gripper

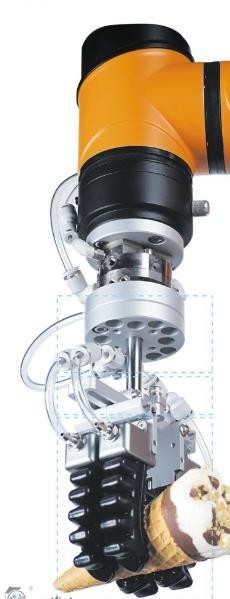

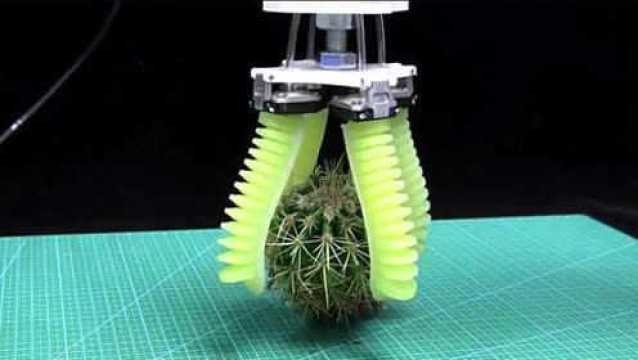

Flexible silicone molded gripper for easy handling of various irregular shapes and delicate items
Safely handling fragile and delicate items to improve production quality and reduce waste
No external air supply required, dust-free, noiseless, easy to operate, no additional cost.

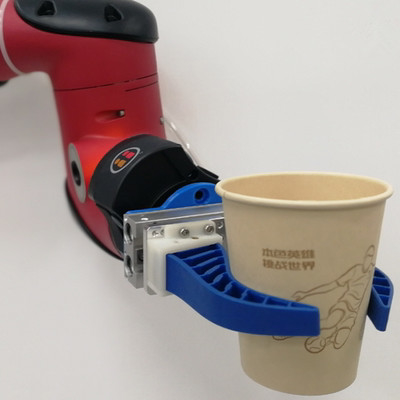

Rigid two finger electric claw
We have launched adaptive electric gripper RG2 and RG6 that can be used by various robots in a plug and play manner, as well as a flexible and efficient collaborative dual gripper configuration Dual-RG. We have also innovatively launched electric gripper RG-FT with force feedback and proximity feedback. The latest low-cost and small volume two finger parallel gripper 2FG7.
RG2- payload: 2 kg, clamping force: 3N~40 N, clamping range: 0~110mm, self weight: 650g;
RG6- payload: 6 kg, clamping force: 25N~120 N; Clamping range: 0-160mm, self weight: 1kg;
2FG7- payload: 7kg, clamping force: 20N~140 N; Clamping range: 1-73mm, self weight: 1.1kg.
Main features of electric grippers:
UR+certification, with strong adaptability to the appearance of UR robots;
Can be connected, configured, and developed with various brands of robots;
Fingertips can be independently modified and customized;
There is no need for external wiring with UR robots, and the tool end can be connected;
Plug and play, and can operate in collaboration with two claws;
It has the function of loss detection and real-time feedback of grasping width.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Specifications | Parameter |
| Travel (programmable) | 0-160mm |
| Clamping force (programmable) | 25-120 N |
| Conformal grip load | 6 kg |
| Friction grip load | 5 kg |
| Finger position repetition (fingertip grasping) | 0.2mm |
| Closing speed (programmable) | 22-110mm/s |
| Fixture quality | 1 kg |
| Main communication protocols | Modbus RTU(RS-485) |
| Secondary communication protocol options | Modbus TCPEtherNet/IPPROFINETEtherCAT,DeviceNet,CANopen |
Product parameters table
Packaging and Transportation
Send your inquiry directly to us
