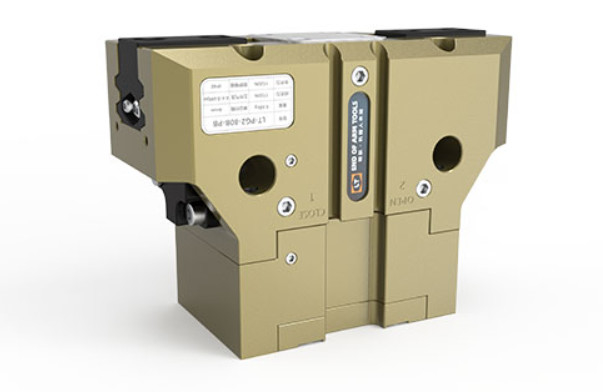

Mechanical gripper with an opening force of 1720N can save energy and increase production

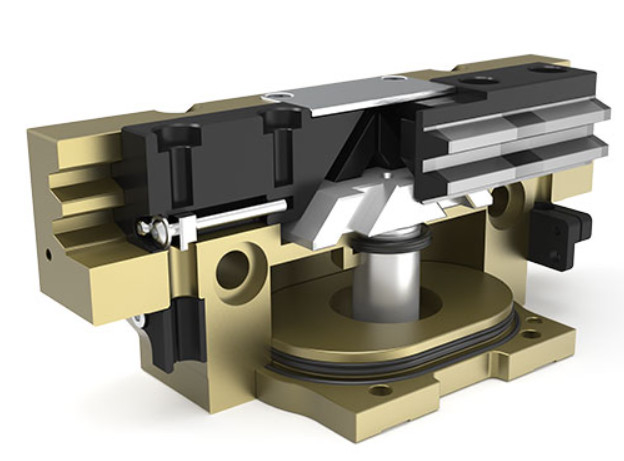

The perfect combination of multi tooth guide rail and trapezoidal structure meets the requirements of carrying greater torque and bending moment
Plating process ensures almost non-destructive accuracy after millions of grinding cycles
Self lubricating design for longer maintenance free service life
Robot grasping system
The so-called robot grasping system, as the name suggests, utilizes artificial intelligence technology and relevant components of mechanical devices to collaborate and ultimately complete the operation process of mechanical clamping and grasping.
According to research, the emerging robot grasping system has multiple excellent features, including stable operation, easy operation, and extremely low energy consumption, which have been effectively integrated into our daily production and life, bringing great convenience and beauty to our daily needs, and further changing our lives. The significant breakthrough in the field of robot grasping systems has given us a firsthand experience of the true significance of technology changing our lives.
The success of robot grasping systems does not come out of thin air, it cannot be separated from decades of perseverance and research, which has brought great convenience to our lives.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| model | LT-PG2-80B-PB |
| Single finger stroke (mm) | 4 |
| Minimum Holding Force (N) | / |
| Closing force (N) | 1520 |
| Zhang Kaili (N) | 1720 |
| Suggested workpiece weight (kg) ① | 7.6 |
| Self weight (kg) | 0.65 |
| Minimum air pressure (Mpa) | 0.4 |
| Rated air pressure (Mpa) | 0.6 |
| Maximum air pressure (Mpa) | 0.8 |
| Protection level (IP) | IP40 |
| Opening/closing time (s) | 0.08/0.08 |
| Repetitive accuracy (mm) | 0.01 |
| Gas consumption (cm3) (two-way) | 44 |
| Maximum finger length (mm) | 80 |
| Maximum weight of fingers (kg) | 0.6 |

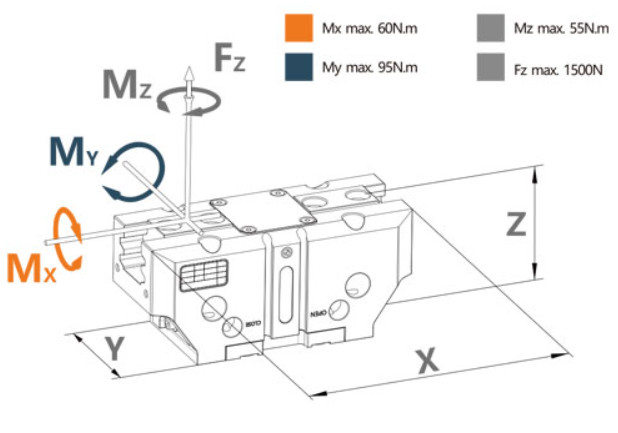

| Torque Mx (N · m) | 60 |
| Moment My (N · m) | 95 |
| Moment Mz (N · m) | 55 |
| Maximum axial force Fz (N) | 1500 |
Product parameters table
