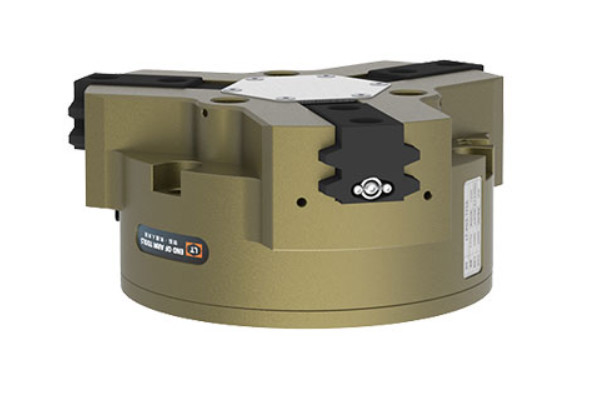

LT-PG3-80B-PB Three Designated Center Mechanical Clamping Claw Repetitive Accuracy 0.01
The main functions of the human end effector
Robot end effector is a specialized term in the robotics industry, which may be difficult for many users who are not familiar with the robotics industry to understand. Simply put, end effector refers to the part of the robot that grippes and works, equivalent to human hands and fingers. The main function of this component is to grab workpieces and perform various related work tasks, and it is a very important main component in robot products.
The main types of robot end effectors
At present, according to the needs of different enterprises, WOMMER Worm has developed various shapes and functions of robot end effectors, including two finger parallel gripper actuators and three finger parallel gripper actuators. In addition, in order to enable the robot to better handle large workpieces, there are also end effectors that use pneumatic power as a power source to provide greater kinetic energy for the robot,
Robot end effectors are the focus of robot product research and development. Currently, robot production enterprises such as WOMMER Worm have developed end effectors with various functions and characteristics, and have provided excellent working performance for enterprises in practical use.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| model | LT-PG2-80B-PB |
| Single finger stroke (mm) | 4 |
| Minimum Holding Force (N) | / |
| Closing force (N) | 3780 |
| Zhang Kaili (N) | 4120 |
| Suggested workpiece weight (kg) ① | 18.9 |
| Self weight (kg) | 1.1 |
| Minimum air pressure (Mpa) | 0.4 |
| Rated air pressure (Mpa) | 0.6 |
| Maximum air pressure (Mpa) | 0.6 |
| Protection level (IP) | IP40 |
| Opening/closing time (s) | 0.1/0.1 |
| Repetitive accuracy (mm) | 0.01 |
| Gas consumption (cm3) (two-way) | 120 |
| Maximum finger length (mm) | 80 |
| Maximum weight of fingers (kg) | 0.6 |

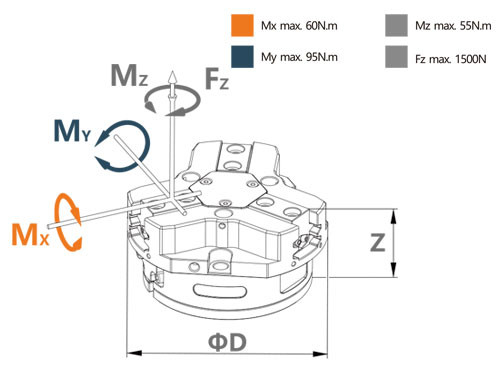

| Torque Mx (N · m) | 60 |
| Moment My (N · m) | 95 |
| Moment Mz (N · m) | 55 |
| Maximum axial force Fz (N) | 1500 |
Product parameters table
