Name: 6 Axis Robot Arm ABB GoFa CRB 15000 Collaborative With Gripper Flexibility
Brand: ABB
SKU: GoFa™ CRB 15000
Price: 800 USD
Availability: InStock
Rating: 4.7 (199 reviews)

Home > products > Robot Screwdriver >

6 Axis Robot Arm ABB GoFa CRB 15000 Collaborative With Gripper Flexibility

6 Axis Robot Arm Collaborative

abb gofa crb 15000

Place of Origin:

CHINA

Brand Name:

ABB

Certification:

Model Number:

GoFa™ CRB 15000

Request A Quote

Product Details

Warranty:

1 Year

Protection:

IP54

Payload:

5kg

Weight:

27kg

Number Of Axes:

Customer Power Supply:

24V/1.5A Supply

Reach:

950mm

Dimensions Robot Base:

165 * 165mm

Payment & Shipping Terms

Minimum Order Quantity

Price

800

Packaging Details

Foam fixation+bubble film protection+wooden box

Delivery Time

6-8 WEEKS

Payment Terms

L/C, T/T

Supply Ability

100sets/month

Cooperative Collaborative Robot Arm UBisense Vision Robot Cutting System Reach 1300mm

Get Best Price

Automatic FANUC Robot Screwdriver Locking For M1.6-M6 Screws Adapted

Get Best Price

Automatic Feeder Screwdriver Machine Robotic Floor Type 4 Axis Screw Fastening

Get Best Price

Universal Robot Screwdriver Automatic Auto Parts Nut Bolt Assembly Machine M1-M4

Get Best Price

86-199-4568-4126

autocell@163.com

86-021-5688-5611

Contact Now

Product Description

ABB Collaborative Robot GoFa CRB 15000 6 Axis Robot Arm With Gripper Flexibility For Screwdriving

Specification

GoFa™ CRB 15000

Go faster. Go further than ever. GoFa’s class-leading speed, safety, and ease of use will take your business to the next level. GoFa incorporates a range of features that allow it to be used safely, directly alongside human workers and without the need to design and build bulky barriers or fencing. GoFa can continuously share workspace with people, giving it maximum flexibility and efficiency. Robot and human cooperate on the same tasks, without jeopardizing productivity or safety.

Strong yet safe

Designed for handling payloads up to 5 kg, GoFa has integrated torque sensors in each of its six joints offering superior power and force limiting performance. Together, these prevent the risk of injury by bringing GoFa to an immediate stop if it senses any contact with a human worker.

Easy set-up

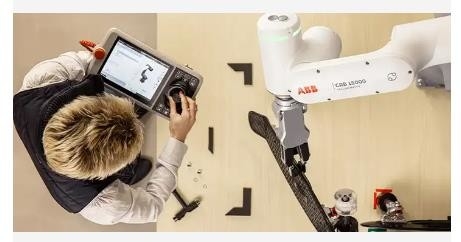

Set up and configuration is easy with intuitive, graphical Apps directly on the FlexPendant. You can move your robot using lead-through in no time.

Greater productivity

GoFa offers a maximum Tool Center Point (TCP) speed of up to 2.2 m/s,* faster than other cobots in its class. GoFa can perform more operations in a set period than competing robots.

Product Features

1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields.

2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport.

3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%.

4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product specifications

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location	Italy, France, Germany, Peru, Indonesia, Morocco, Kenya, Argentina, Colombia, Algeria, Sri Lanka, Japan
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Motor
Condition	New
Horizonal Travel(mm)	950mm
Place of Origin	China
	Shanghai
Brand Name	ABB
Weight	27kg
Power	24V/1.5A supply
Warranty	1 Year
Weight (KG)	27kg
Number of axes	6
Protection	IP54
Mounting	Any angle
Controller	OmniCore C30
Customer power supply	24V/1.5A supply
Payload	5kg
Reach	950mm
Functional safety	Category 3, PL d
Dimensions robot base	165 * 165mm
Weight	27kg

Product parameters table

6 Axis Robot Arm ABB GoFa CRB 15000 Collaborative With Gripper Flexibility 4
