Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
EPG40-050
Contact Us

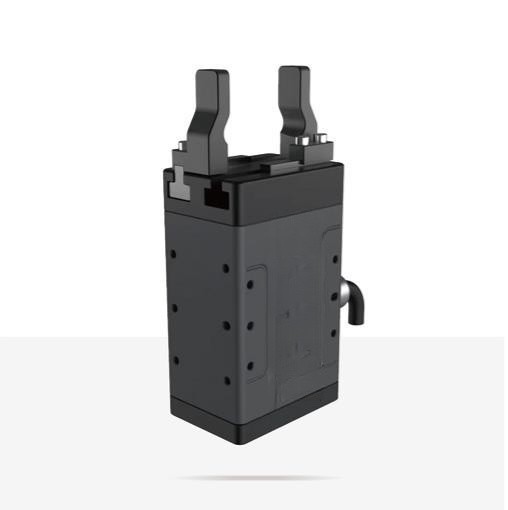

EPG40-050 Industrial Pallet Delta Robot Arm Electric Palletizer Gripper For Bottles
1. The electric claw can achieve precise force control, which requires gripping force control, such as thin and fragile components, without causing damage to the components.
2. The electric claw can flexibly adjust the clamping stroke to achieve clamping of components of different sizes.
3. The gripping speed of the electric claw is controllable, which can intelligently plan and improve work efficiency.
4. The integrated drive and control design of the electric claw, with direct bus connection, greatly simplifies the wiring of the production line, saves a lot of space, and is clean and safe.
5. The energy consumption of the electric claw is much lower than that of the pneumatic claw.
The speed of electric grippers is a key factor in ensuring the efficiency of automated production, and their ability to quickly grip and transfer items is one of the necessary conditions for efficient operation of automated production lines. In modern automated production lines, the tasks undertaken by electric grippers are very heavy, requiring the gripping and transmission of items to be completed in a short period of time. The electric gripper adopts high-speed motor driving technology, which can complete the clamping and transmission operations in an instant, greatly improving production efficiency. During the process of gripping and transporting items, high accuracy can be maintained to ensure the accuracy of the operation.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
EPG40-050-0L#-C0024-P40-A
|
| Adjustable stroke | 0-40 mm |
| Single finger clamping force | 2-50 N |
| Opening/closing time | 0.5s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 0.8 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.4 Kg |
| IP GRADE | IP 40 /IP 65 |
| Rated voltage | DC 24±10% V |
| Maximum current | 0.85 A |
| Rated current | 0.4 A |
| Communication protocol | Modbus RTU(RS 485)
Digital I/O
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2 N·m |
| Allowable static moment of slider My | 1.5 N·m |
| Allowable static moment Mz of slider | 2 N·m |
Product parameters table
