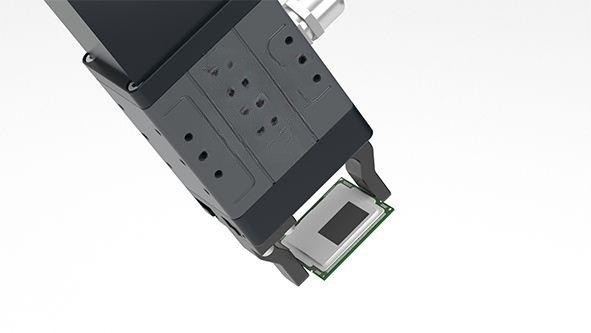

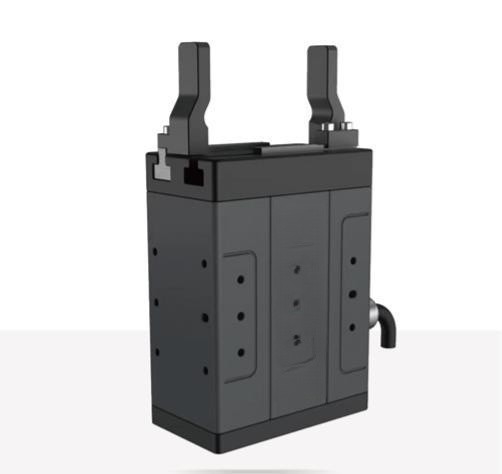

Industrial Robot Electric Robot Hand Grippers 6 axis Robot Arm Grippers.Stroke 50mm
Product Overview
In automated production lines, time efficiency is very important. The speed of electric grippers can greatly improve production efficiency and reduce the waiting and stopping time of the production line. During the process of gripping and transferring items, electric grippers can grip or transfer items to the target location in a very short time, avoiding the prolonged stay of items in the machine, shortening the production cycle, and improving production efficiency. Moreover, due to the speed of electric grippers, more gripping and transmission tasks can be completed in the same time, maximizing the output rate of the production line and achieving higher profits and economic benefits.
Due to its fault diagnosis capability, combined with the status of the ambient light, the electric gripper makes it easy for users to determine whether it is a gripper fault or a back-end integrated controller fault. If the gripper fault is determined, the simplest way is to directly replace the electric gripper, which is extremely convenient. Afterwards, there are several aspects such as location adjustment, information feedback, standardization level, maintenance costs, service life, vulnerability, multi machine synchronous control, mobile platform usage, price, etc.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
EPG50-060-0L#-C0024-P40-A
|
| Adjustable stroke | 0-50 mm |
| Single finger clamping force | 2-60 N |
| Opening/closing time | 0.6s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 1 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.80 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 1.5 A |
| Rated current | 0.4 A |
| Communication protocol | Modbus RTU(RS 485)
Digital I/O
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2 .5N·m |
| Allowable static moment of slider My | 2 N·m |
| Allowable static moment Mz of slider | 2.8 N·m |
Product parameters table
