Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
EPG50-100
Contact Us

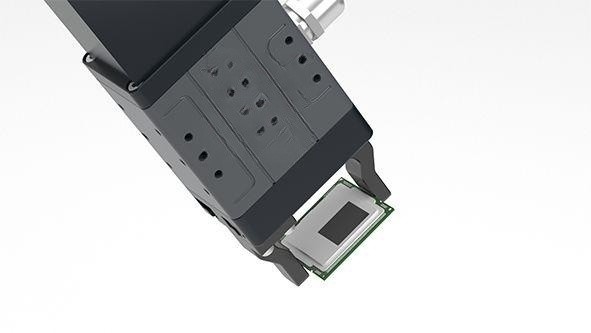

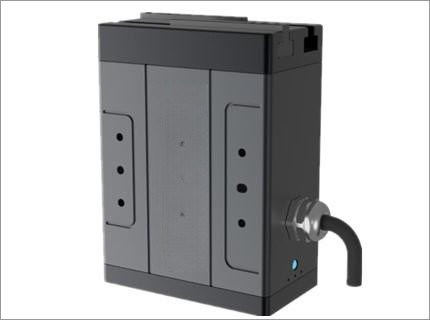

High Quality EPG50-100 Simple To Use Robot Arm Pneumatic Gripper/Clamping force 100N
Product Introduction
The accuracy of electric grippers is an important part of ensuring the smooth operation of automated production lines, involving the accuracy of item clamping and transmission. Once deviations or errors occur, they may lead to problems in the subsequent production process, affecting the normal operation of the entire production line. Therefore, when designing and manufacturing electric grippers, attention should be paid to accuracy considerations. By adopting advanced clamping devices and control systems, the accuracy and stability of item gripping and transmission can be ensured.
The clamping device of the electric gripper is crucial. During the process of gripping items, the gripping device needs to accurately control the gripping force and position to avoid displacement or falling of items during gripping and transmission. For example, when gripping and conveying flat items, using a clamp with a compression spring can ensure the stability of the clamping force and position, while also adapting to items of different shapes and thicknesses; When gripping and transmitting circular items, a curved gripper is used to accurately control the gripping position and angle, ensuring the accuracy and stability of item gripping and transmission.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
EPG50-100-0L#-C0024-P40-A
|
| Adjustable stroke | 0-50 mm |
| Single finger clamping force | 40-100 N |
| Opening/closing time | 1.10 s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 2 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.53 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 0.6 A |
| Rated current | 0.25 A |
| Communication protocol | Modbus RTU(RS 485)
Digital I/O
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2.5 N·m |
| Allowable static moment of slider My | 2 N·m |
| Allowable static moment Mz of slider | 2.8 N·m |
Product parameters table
