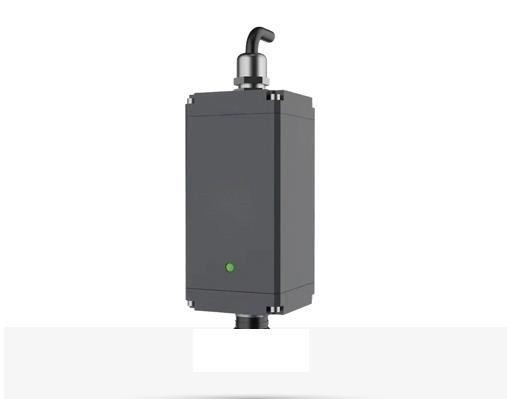

Programmable and easy to install electric vacuum actuator, vacuum degree 10% -60%
More details and advantages
This product, which looks very small and has a self weight of only 2.5kg, can achieve a high load level of 10kg. Due to the use of 24V low-voltage design, the energy consumption is 20% of that of traditional pneumatic systems, and the adsorption force at the end can be set and adjusted, reaching 102-510N.
In terms of structural design, the EVS adopts a more compact and lightweight structural design, which makes the EVS 30% smaller than traditional pneumatic dimensions when loaded with the same weight.
At the same time, it can be directly connected to the end connector of the robotic arm, which reduces redundant auxiliary components and makes it more flexible to use. It can be quickly deployed and easily absorb multiple large objects, especially suitable for scene operations such as stacking and handling.
In order to improve the convenience of use, the electric vacuum actuator also has an integrated interface that can be used to control and monitor the entire process of adsorbing objects.
It is reported that this is to facilitate the customer to control the vacuum degree of the vacuum actuator through the command, and also to monitor the adsorption process and Predictive maintenance through the IO link connection. The status monitoring will reduce errors and downtime and ensure the availability of the system.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
EVS01-1L#-C1024-P40-A
|
| Vacuum degree | 10% -60% |
| Maximum flow | 2.5 L/min |
| Body weight | 0.3 Kg |
| Maximum recommended load | 1 Kg |
| Fastest adsorption time | 0.1 s |
| Fastest release time | 0.1 s |
| Protection grade | IP40 |
| Power Down Hold | Not Supported |
| Usage environment | 0-40 ℃, below 85% RH |
| Operating noise |
<70dB
|
| Rated voltage |
DC 24±10% V
|
| Rated current |
0.13 A
|
| Peak current |
0.3 A
|
| Complies with international standards |
CE,RoHS
|
| Communication protocol | Modbus RTU (RS485) Digital I/O optional |

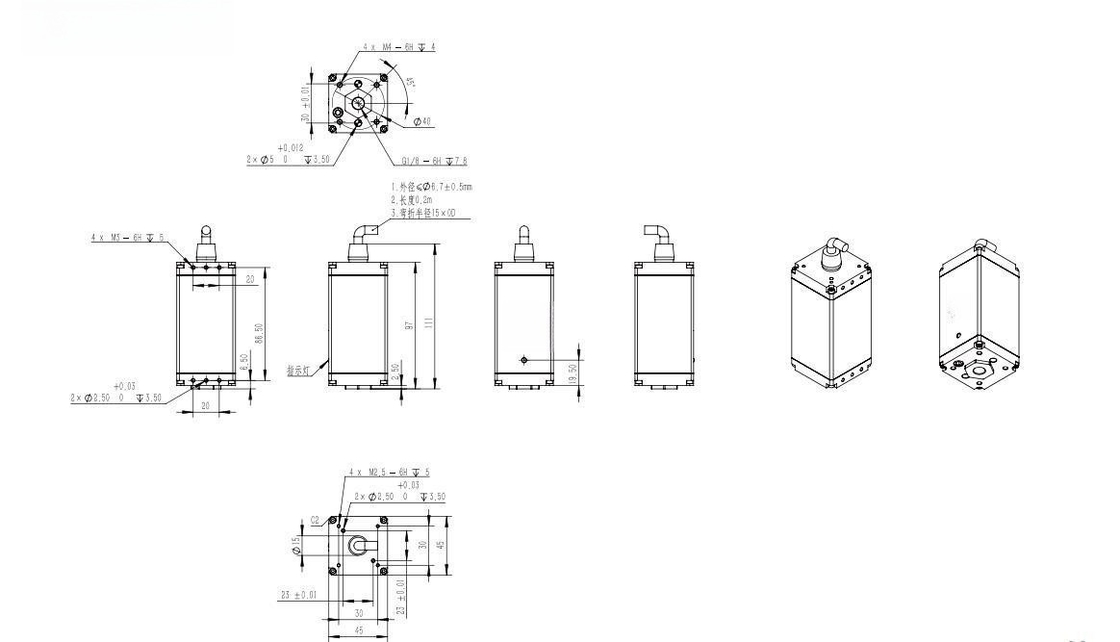

Product parameters table
