Place of Origin:
china
Brand Name:
youngyou
Certification:
CE
Model Number:
EW-02-L#T-05-B
Contact Us
video

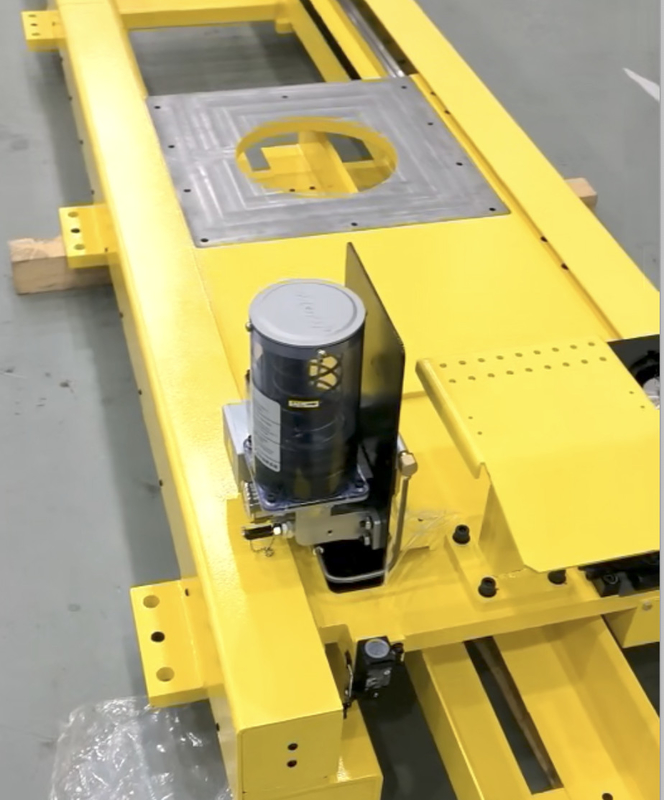

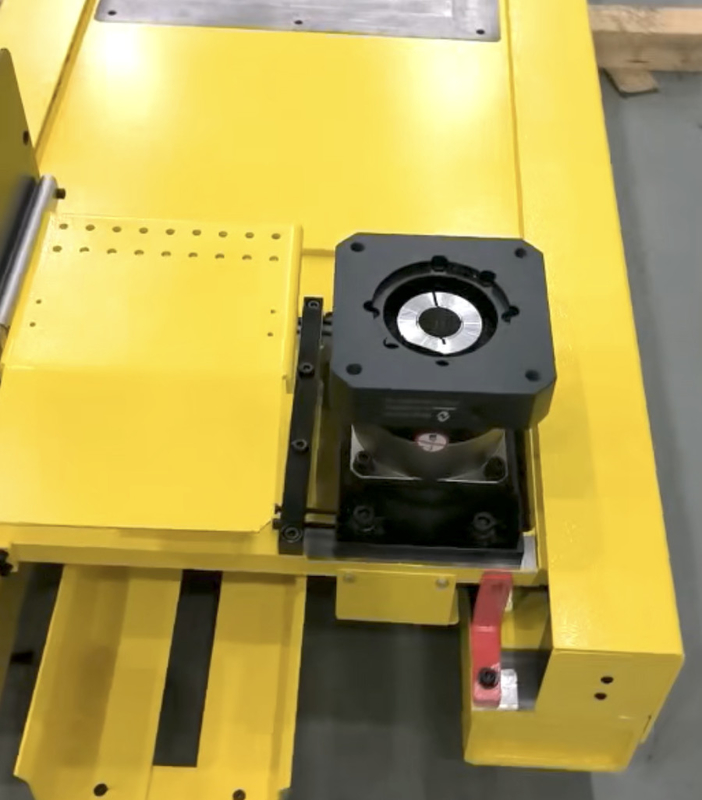

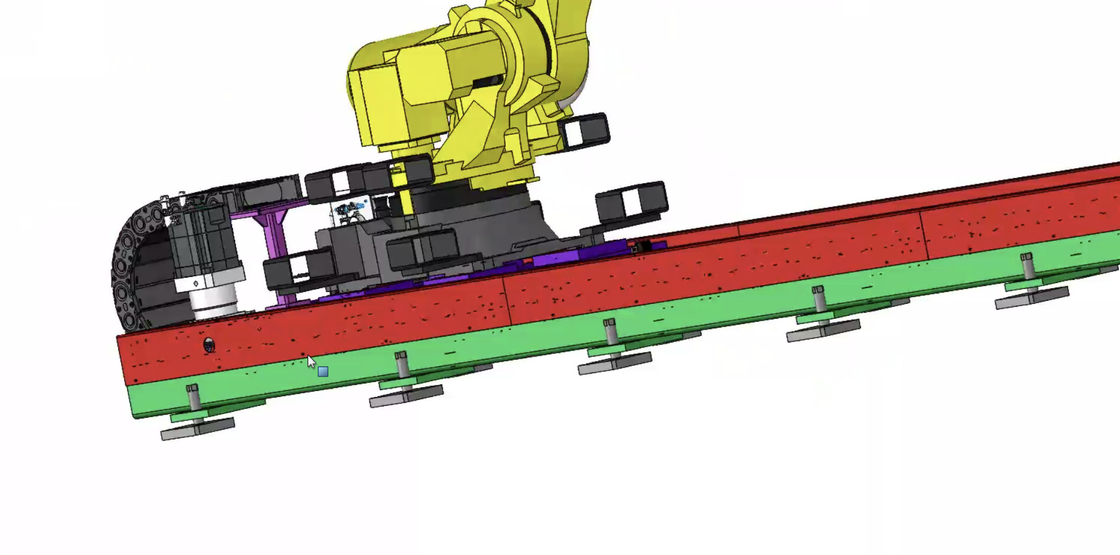

Robot Linear Guide Rail is a high-performance linear guide rail system designed for industrial robots. It has a load capacity of up to 2000kg and an effective stroke of 1-100 m, with 1 m intervals that can be customized for special and ultra-long travel. It is driven by an AC servo motor, allowing it to run at speeds of up to 3 m/s. It is installed on the ground using chemical bolts.
Robot Linear Guide Rail is ideal for precise and heavy-duty applications, with high load capacities and long effective strokes. Its AC servo motor drive allows for fast, smooth operation, while its ground installation method enables quick and easy installation. It is perfect for applications requiring heavy-duty precision, high running speed, and long stroke length.
Robot Linear Guide Rail is an ideal solution for industrial robots. Its high load capacity, effective stroke, driving method, running speed, and installation method make it a reliable and robust solution for any application.
| Parameter | Details |
|---|---|
| Repeatability | ±0.02 Mm |
| Installation method | Ground Installation (using Chemical Bolts) |
| Acceleration | 1 - 3m/s |
| Equipment load | 2000kg |
| Number of robot installations | 1-3 Units (customizable If More Robots Need To Be Installed) |
| Running speed | 1 - 3m/s |
| Effective stroke | 1-100 M (1m Interval, Customizable For Special And Ultra Long Travel) |
| Driving method | AC Servo Motor Drive |
Youngyou Robot Linear Guide, Model Number EW-02-L#T-05-B, has been certified by CE and has a minimum order quantity of 1. The price is up for counseling. The package includes a Wooden Case/Carton, and the delivery time is 6-8 weeks. It has a high repeatability of ±0.02 Mm and a running speed of 1-3m/s as well as an acceleration of 1-3m/s. It uses a Ground Installation (Using Chemical Bolts) method, and it can support up to 1-3 Units of robots installation. If more robots need to be installed, it can be customized.
Our Robot Linear Guide Rail offers excellent performance in robot applications, with features including: AC Servo Motor Drive, Effective stroke from 1-100 M, Ground Installation using Chemical Bolts, and a running speed from 1-3 m/s.
1
Robot Linear Rail products will be packed in standard shipping containers or on pallets. The containers should be closed and sealed to prevent tampering. All containers should be clearly labeled with the shipping information and a “Fragile” label.
Robot Linear Rail products will be shipped via ground or air freight, depending on the size and weight of the shipment. All shipments should be tracked and insured for the full value of the product. The customer should be notified of the shipment’s progress and estimated delivery date.
