Place of Origin:
china
Brand Name:
YDobot
Certification:
ul
Model Number:
EWR-YJ5
Contact Us
video
Programming class Robot load 5kg motion display programming instrument
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes

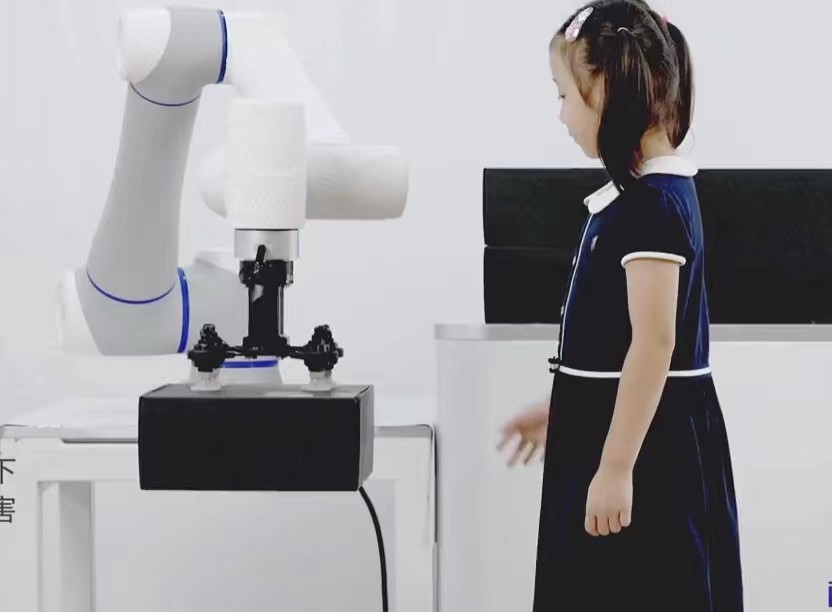

use of a robotic arm for science experiments. The robot arm can handle delicate and dangerous chemicals, making it safer for students to conduct experiments. The cobot's precision and accuracy can also help ensure the experiment's success, providing students with a more meaningful learning experience.
Compared to traditional industrial robots, cobots have several advantages in educational settings. One advantage is their safety features, which make them ideal for use around students. Cobots are equipped with sensors and other safety features that allow them to work safely alongside humans, reducing the risk of accidents and injuries.
| ITEM | DETAIL |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 1 channel ABZ incremental encoder input | |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY | |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function | |
| Reserved remote service function |
1
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
If you have any questions, please feel free to contact us at WhatsApp:+8618601676399 Email: carmen.lu@rely-robot.com
