Place of Origin:
china
Brand Name:
CHHANS
Certification:
ce cr
Model Number:
EWR-DZ-18
Contact Us
video

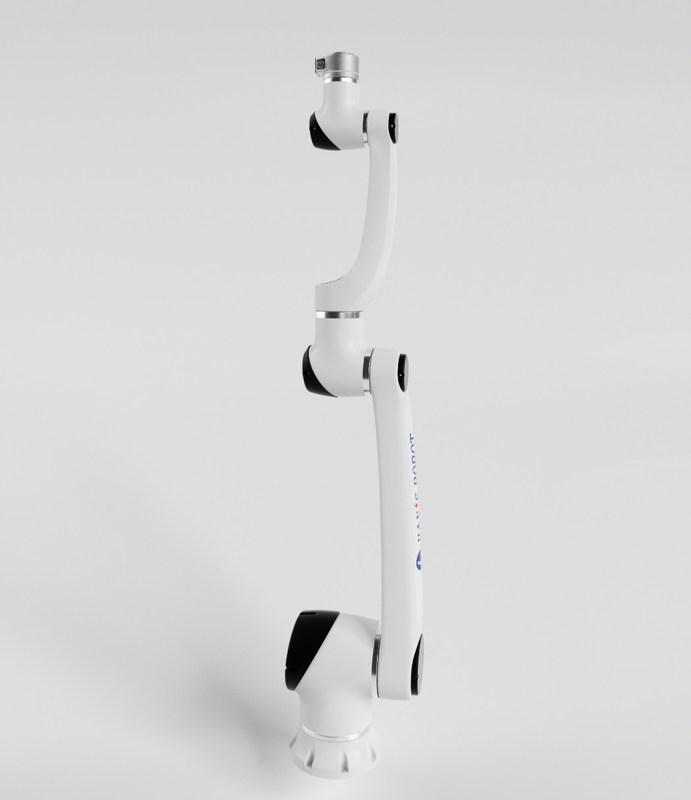

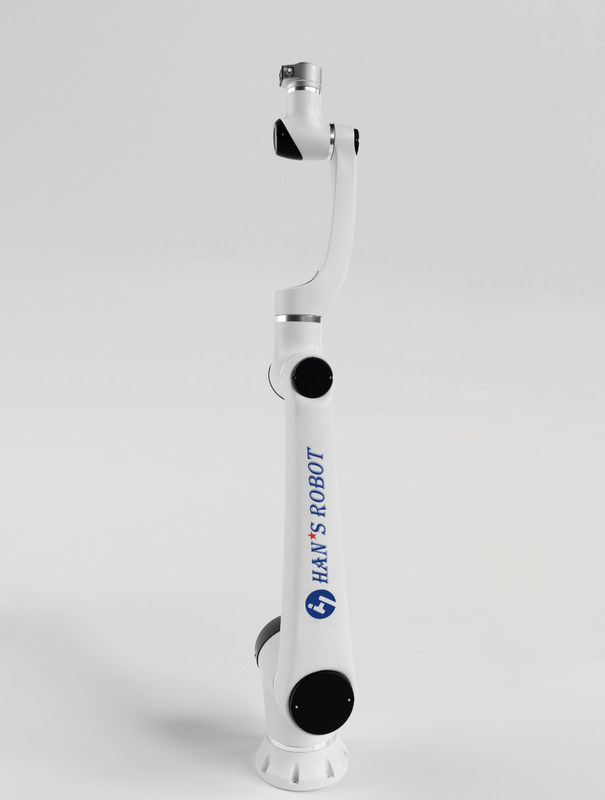

Pick and Place cobot arm Robotic Arm With Customizable Operating System
This robot is a cooperative robot with a large load and stable operation. It is used in many well-known factories, such as Apple's accessories factory in China, which is mainly equipped with agv cars in the dust-proof workshop as the transfer station of the conveyor line.
The sorting of disordered materials can reduce the manual work pressure on industrial sites, greatly simplify the loading process, reduce incoming material requirements, and can be applied to the scene requirements of material sorting operations in various industries.
Company Product List
400g load robot
3kg load robot
5kg load robot
7kg load robot
10kg load robot
15kg load robot
Robot dress pack
........
| ITEM | VALUE |
| Communication mode | TCP/IP Modbus |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Package Size | 1050*610*480mm |
| Gross Weight | 73kg |
| Warranty | 1 Year |
| Technical service | Online support |
| Weight (KG) | 58kg |
| Axis | 6 axis |
| Payload | 18kg |
| Reach | 1100mm |
| Control cabinet size | 536*445*319mm |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.1mm |
| IP protection | IP54 |
| Temperature range | 0~50° |
| Typical power consumption | 600W |
We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me:+8618601676399
