Place of Origin:
china
Brand Name:
YDobot
Certification:
ul
Model Number:
EWR-YJ5
Contact Us
video
| ITEM | DETAIL |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 1 channel ABZ incremental encoder input | |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY | |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function | |
| Reserved remote service function |

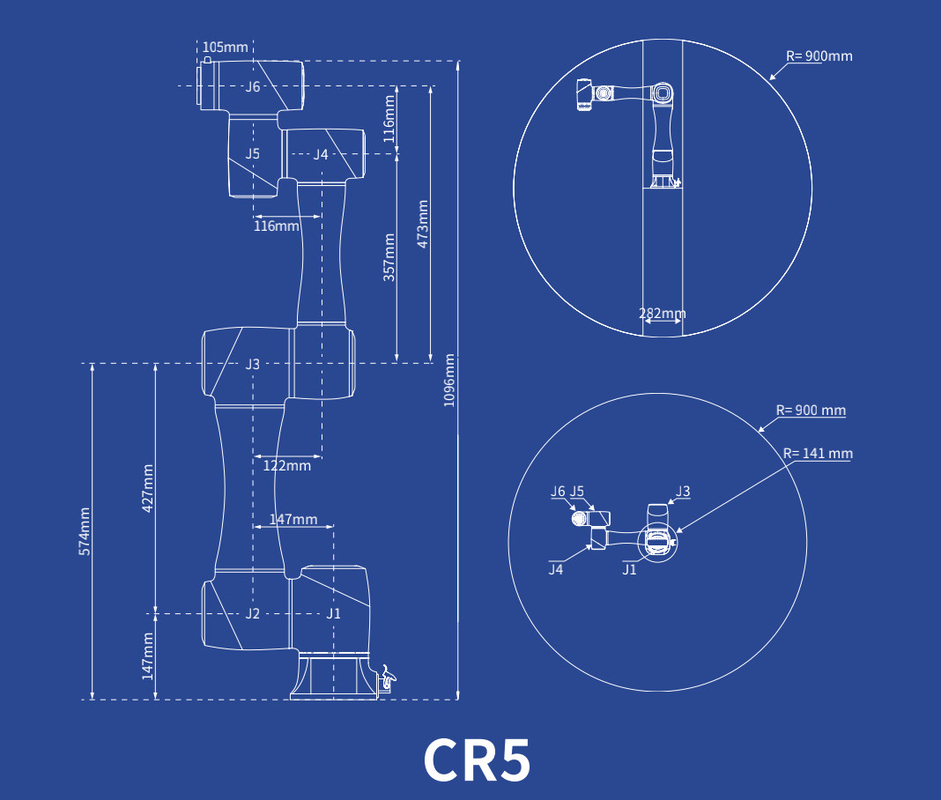

The industrial robot for quick replacement and assembly can reach 900mm
The lack of chips has led to the delay in the delivery of a large number of industrial robots. How can the production line quickly integrate workstations to solve the current production problems?

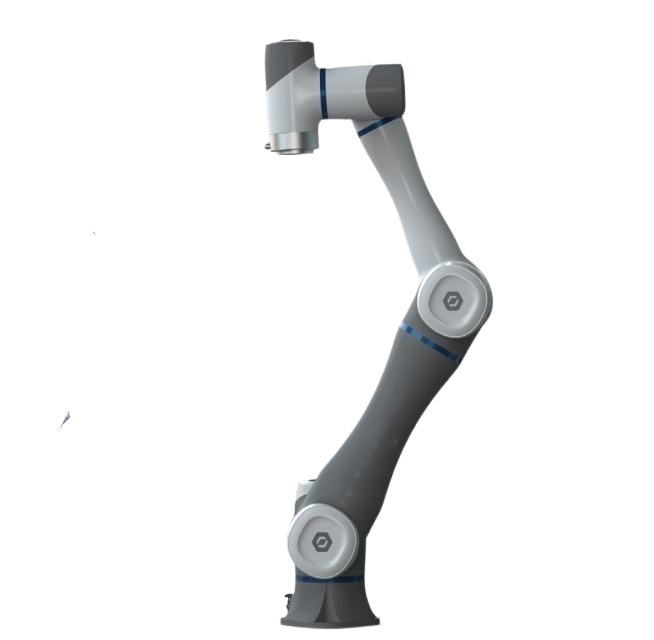

5kg load of cooperative robot for food processing plant packagingRobots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Customer pain points:
Loading and unloading work is single and repetitive, so it is difficult to recruit suitable workers.
The traditional automation import cycle is long and the cost is high, depending on the integrator.
Solution:

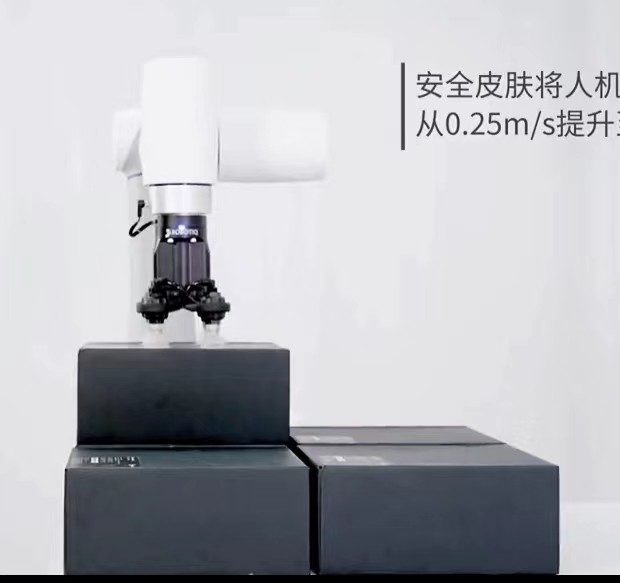

This case is composed of cr5, upper computer, conveyor belt, etc. The cr5 is equipped with suction cups to pick up parts from the tray and put them on the conveyor belt for transmission to the next process. The pallet adopts a combination of 3 * 8 * 2, and the robot disassembles in turn to complete the loading of all materials on the pallet. The staff can control through the upper computer to make the whole production process more coordinated and efficient.
Customer value:
It can save 2 people and improve the efficiency by 20%.
Less floor space, higher return on investment.
Product advantages:
The cr5 supports drag teaching, graphical editing and other methods. Ordinary people can quickly integrate it into various pipelines in 10 minutes, especially for some complex and changeable automation tasks.
If you need more product information, you can call me directly or add my WeChat:+8618601676399
Transportation and Packaging
In addition to providing collaborative robots with diverse loads and arm extensions, we also provide conventional industrial robots and peripheral products, such as robot guides, robot protective clothing, robot grippers, and robot software. Please feel free to contact our sales hotline (WhatsApp) at: +8618601676399
