Place of Origin:
china
Brand Name:
CHYY
Certification:
ul
Model Number:
EWR-JKU5
Contact Us
video

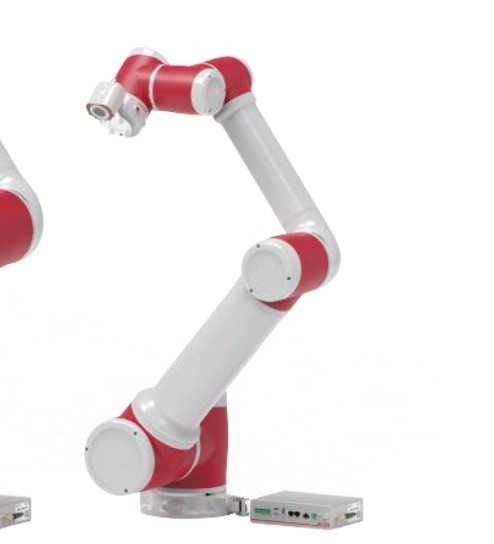

Highly flexible cobot Reach 954mm can use in Stacking System at Healthcare manufacturing
CR series is easy to deploy and operate, and ordinary workers can quickly get started.
Rich components and process packages enable users to easily integrate various applications.
Low installation requirements, no need to change the existing production line layout when importing.
Widely used in library, sample workshop, hotel, clothing store, building materials store, machinery repair shop, manufacturing factory, food and beverage factory, farm, restaurant, household, retail, food store, printing shop, construction engineering, energy and mining, food and beverage store, advertising company, others.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
Laser Welding Robot System
Robot Positioner
| ITEM | VALUE |
| Applicable Industries | Food and beverage manufacturing/Automotive manufacturing/Healthcare manufacturing/Electronics manufacturing |
| After Warranty Service | Video technical support, Online support |
| Core Components | PLC, Motor |
| Does it support drag and drop teaching | YES |
| Warranty | 1 Year |
| Weight (KG) | 23kg |
| Axis | 6 axis |
| Payload | 5kg |
| Reach | 954mm |
| Rated voltage | DC48V |
| Maximum operating speed | 4m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 350W |
| Can OEM with the LOGO and color | YES |
Customer pain points:
The efficiency of manual feeding is low, and it is easy to cause strain for a long time.
The job is monotonous and recruitment is difficult.
Solution:
Semi automatic food and daily chemical packing box stacking is mainly composed of CR series robot, lifting mechanism and a set of feeding conveyor belt. The end of the robot is equipped with non-standard suction cups, and the base is equipped with a lifting mechanism, which is matched with the feeding conveyor belt to achieve the orderly stacking of packaging boxes. In this case, through CR robot, the packing boxes from the fully automatic production line are absorbed and stacked orderly, and the lifting mechanism is equipped to increase the floor height, which is efficient, fast and improves the production capacity.
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packagesIf you have any questions, please feel free to contact us at WhatsApp:+8618601676399 Email: carmen.lu@rely-robot.com
