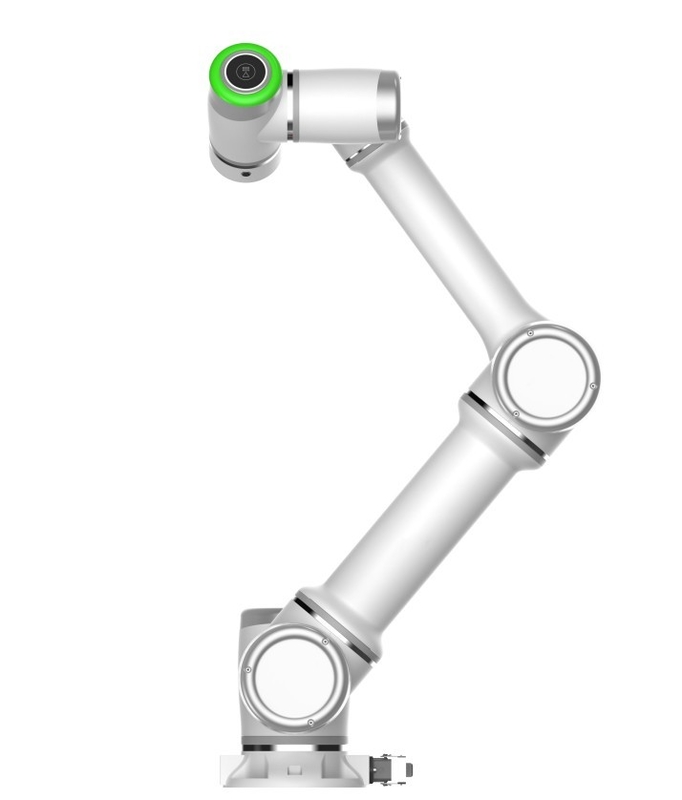

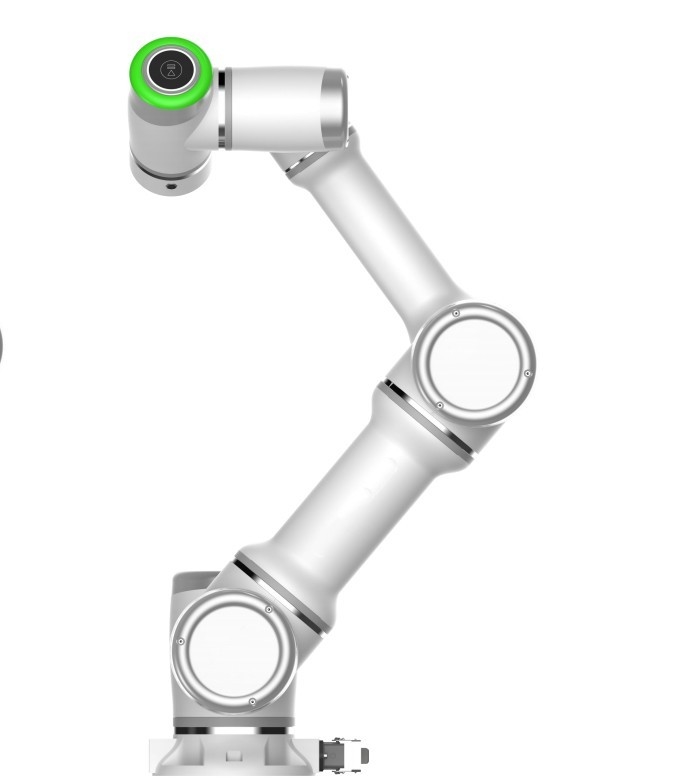

6 Axis Cooperative Cobot Arm Reach 626mm Payload 3kg For Chip Assembly
Packaging or handling work in chip factories can be completely completed by robots. Robots produced in China are increasingly used in various factories, regardless of their repetitive positioning accuracy or ultra-high cost performance. Select our robots to reduce your factory costs and improve your production efficiency.
Graphical programming, drag and drop programming,It can make programming without borders. Engineers from any country, even if they have only a secondary school education, can also complete robot programming very quickly.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
Robot Accessories
Industrial Robot Software
| ITEM | VALUE |
| Applicable vision system | HIKVISON/COGNEX/KEYENCE/BASLER/Micromatch |
| Mech-Mind/UBisense/Seizet | |
| After Warranty Service | Video technical support, Online support |
| Communication mode | TCP/IP Modbus |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Cable length | 6M |
| Material | Aluminum alloy, PC |
| Warranty | 1 Year |
| Technical service | Online support |
| Weight (KG) | 12kg |
| Axis | 6 axis |
| Payload | 3kg |
| Reach | 626mm |
| Control cabinet size | 410×307×235 (mm) (W×H×D) |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~50° |
| Typical power consumption | 350W |
Electronics manufacturing: Cobots are well-suited for electronics manufacturing, where precision and accuracy are critical. They can be used to perform tasks such as pick-and-place operations, soldering, and assembly.
We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me ,Whatsapp:+8618601676399 EMAIL:carmen.lu@rely-robot.com
