Place of Origin:
china
Brand Name:
YDobot
Certification:
ul
Model Number:
EWR-YJ5
Contact Us
video

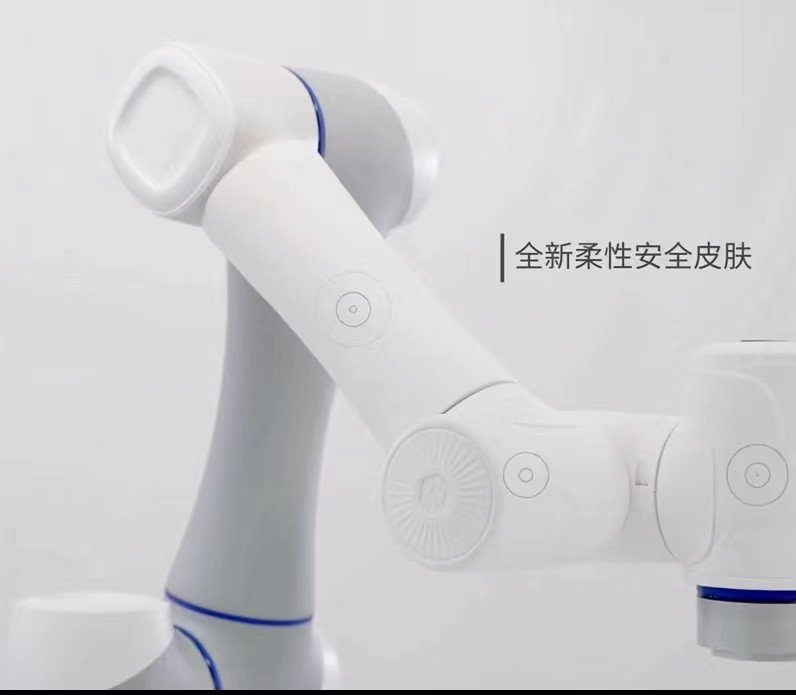

5kg Load Collaborative Robot Arm For Laboratory Carrying safty and 24-hour operation
Widely used in library, sample workshop, hotel, clothing store, building materials store, machinery repair shop, manufacturing factory, food and beverage factory, farm, restaurant, household, retail, food store, printing shop, construction engineering, energy and mining, food and beverage store, advertising company, others.
Product Supply
ABB Robot
Kuka Robot
Yaskawa Robot
Fanuc Robot
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| After Warranty Service | Video technical support, Online support |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Warranty | 1 Year |
| Weight (KG) | 25kg |
| Weight of control cabinet | 12kg |
| Axis | 6 axis |
| Payload | 5kg |
| Reach | 900mm |
| Rated voltage | DC48V |
| Maximum operating speed | 3m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 150W |
Customer pain points:
Formaldehyde, acetaldehyde and other harmful gases exist in the plasticizing workshop, which is not conducive to human health.
Manual feeding is inefficient and easy to cause unexpected risks.
Solution:
After getting the labeled materials through the CR10 robot, the high-speed conveyor belt will send the materials to the limit block, and the eccentric gripper will move the mechanical arm to the barrel edge. The soft coating material will be used to achieve the action of sticking the injection molding surface materials to the stickers, thus realizing the process requirements of fully automated assembly line production.
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
