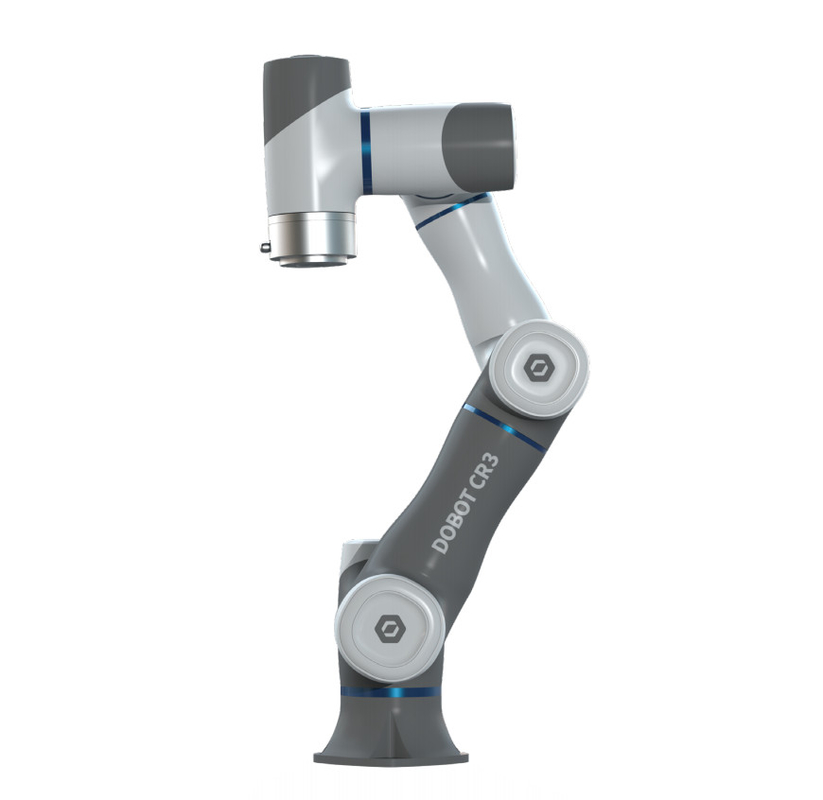

The handling collaborative cobot with 3kg payload and range 620mm in assembly line
In electronics assembly, cobots can perform tasks such as pick-and-place operations, soldering, and assembly, which can help improve efficiency and productivity while reducing costs and the risk of human error. Additionally, cobots can be programmed to perform repetitive and hazardous tasks, freeing up human workers to focus on more complex and strategic tasks.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Technical service | Online support |
| Weight (KG) | 16.5kg |
| Weight of control cabinet | 12kg |
| Axis | 6 axis |
| Payload | 3kg |

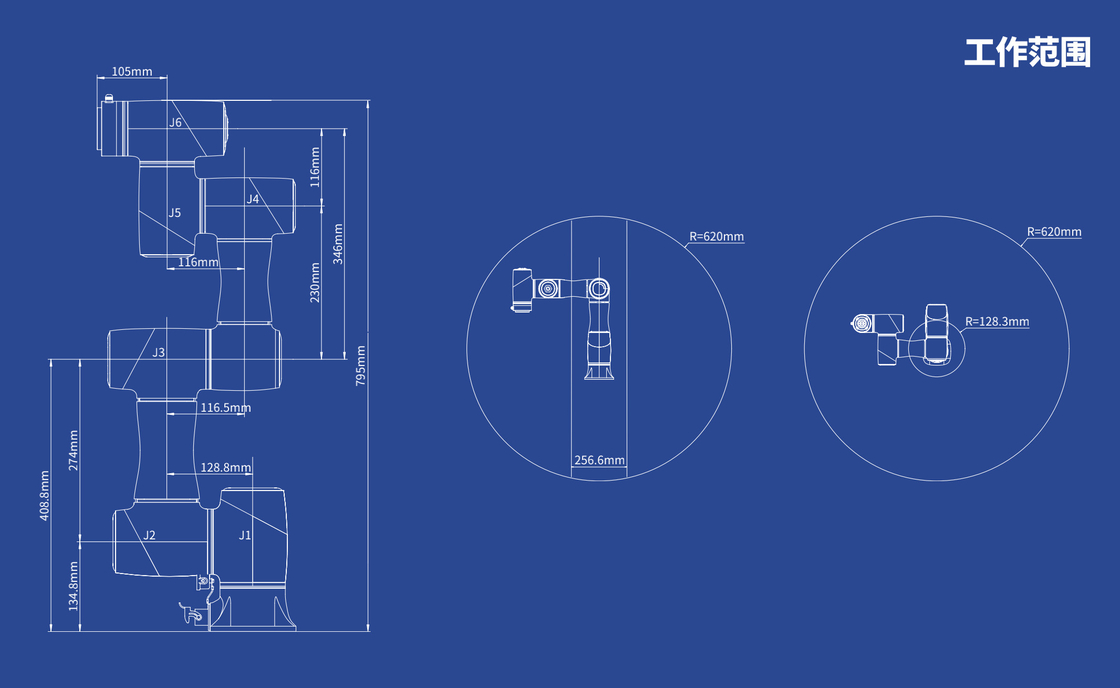

| Reach | 620mm |
| Rated voltage | DC48V |
| Maximum operating speed | 4m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 120W |
Pick-and-place operations: Cobots can be programmed to pick and place electronic components on a circuit board, which can help improve accuracy and speed up the assembly process.
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
