Place of Origin:
china
Brand Name:
EWDobot
Certification:
ul
Model Number:
EWR-YJ5
Contact Us
video

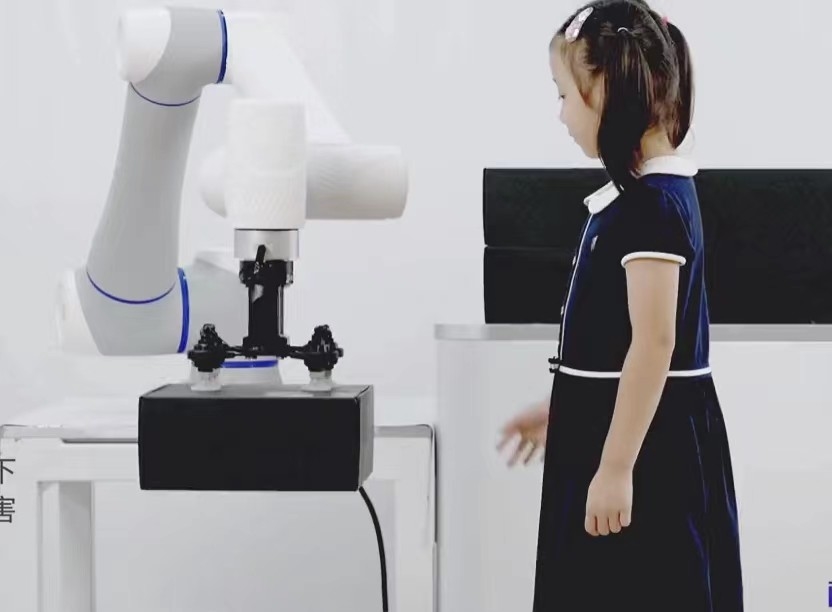

The cooperative robot arm that can efficiently carry drugs in the hospital has a load of 5kg
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
Robotic Arm Gripper
Laser Welding Robot System
Robot Screwdriver
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| After Warranty Service | Video technical support, Online support |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Warranty | 1 Year |
| Weight (KG) | 25kg |
| Weight of control cabinet | 12kg |
| Axis | 6 axis |
| Payload | 5kg |
| Reach | 900mm |
| Rated voltage | DC48V |
| Maximum operating speed | 3m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 150W |
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
If you have any question about the robot or products. Please contact us. whatsapp: +8618601676399
