Place of Origin:
china
Brand Name:
YDobot
Certification:
ul
Model Number:
EWR-YJ5
Contact Us
video

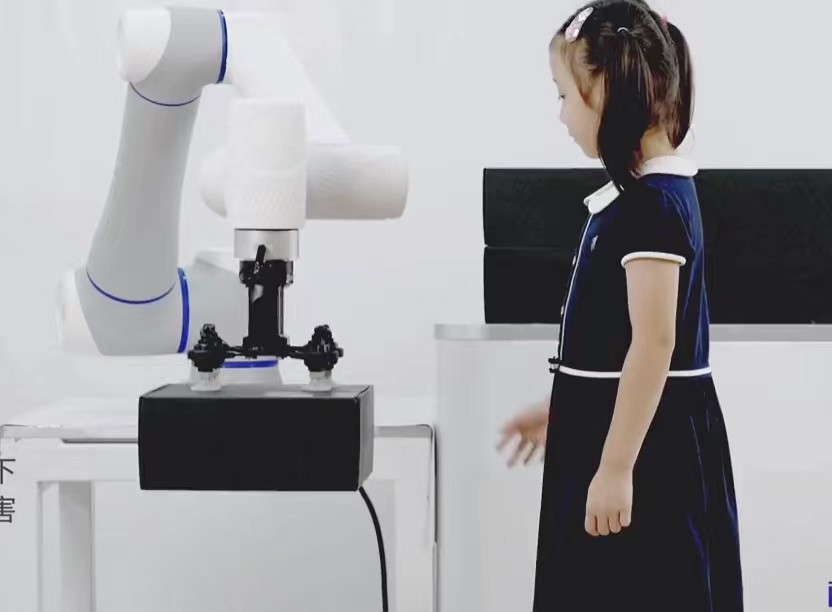

Cooperative robot teaching robot that can be put in school for children to use safely
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Collaborative robots, or cobots, are becoming increasingly popular in educational settings due to their ability to safely and efficiently interact with students. Unlike traditional industrial robots, cobots are designed to work alongside human operators, making them ideal for educational applications.
One example of a cobot in education is the use of a robot arm equipped with a camera and microphone to assist with distance learning. The robot arm can move around the classroom and zoom in on specific areas, allowing remote students to feel more engaged and involved in the class. The cobot's ability to safely operate around students also makes it an ideal tool for interactive learning activities.
| ITEM | DETAIL |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 1 channel ABZ incremental encoder input | |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY | |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function | |
| Reserved remote service function |
Customer pain points:
Manual detection is inefficient and cannot be operated for a long time.
Solution:
The nucleic acid automatic liquid mixing/transferring machine adopts a CR3 cooperative robot, which can automatically complete the operations of feeding, capping opening, liquid mixing, liquid transferring, capping closing, blanking, etc. The accuracy can be controlled to 0.002ml, and the four mixing can be realized. This scheme can meet the production needs of liquid mixing and liquid transfer in the medical field, save manpower, archive and query data, and be accurate and controllable.
Customer value:
24-hour operation improves the detection efficiency.
High accuracy to avoid human error.
Product advantages:
CR series lightweight fuselage takes up less space and can be flexibly operated in narrow space.
If you need more product information, you can call me directly or add my WeChat:+8618601676399
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
If you have any questions, please feel free to contact us at WhatsApp:+8618601676399 Email: carmen.lu@rely-robot.com
Our logistics and packaging methods
Send your inquiry directly to us
