Unique parallel structure of Fanuc Fist Robot with a radius of 800mm for logistics handling
Specialties

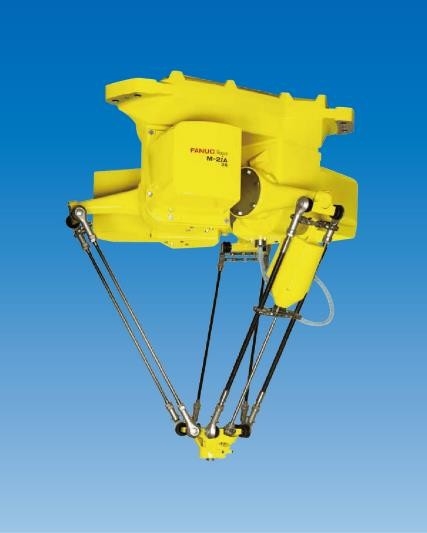

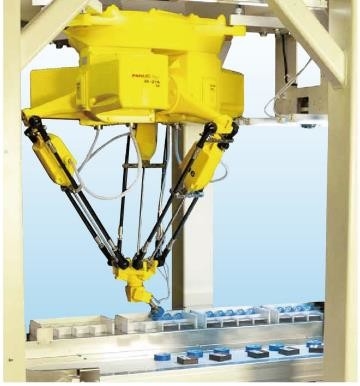

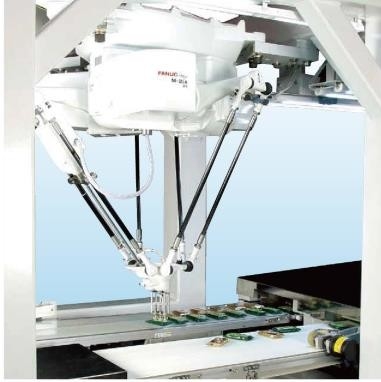

FANUC Robot M-2ia is a medium-sized parallel link robot suitable for high-speed handling and assembly.
Six models can be selected based on the different degrees of freedom and range of motion of the wrist. FANUC Robot M-21A/ 3A. M-21A/3AL
The wrist adopts a 3-axis rotation structure, suitable for complex tasks such as alignment and assembly that require posture changes.
FANUC Robot M-21A/ 3S. M-21A/3SL
The wrist adopts a 1-axis rotation structure, suitable for high-speed whole train operations that require direction adjustment on the conveyor belt.
FANUC Robot M-21A/ 6H. M-21A/6HL
A 3-axis robot without a rotating axis on the wrist can handle a mass of 6kg. Suitable for high-speed sorting of workpieces.
-Among the six models mentioned above, the M-2iA3AL, M-2ia/3S, and M-2iA/6HL cover a wider range of motion by using longer connecting rods
It adopts a fully sealed structure (P69K), which can correspond to high-pressure jet cleaning.
Materials, surface treatments (options), and lubricants that correspond to food hygiene can be selected. Has made contributions to automated production in the food industry.
Various intelligent functions such as RVision (built-in visual function) and 1RTickTool can be used.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| ITEM | VALUE |
| Applicable Industries | Manufacturing factory, food and beverage factory, farm, restaurant, household, retail, food store, printing shop, construction engineering, energy and mining, food and beverage store, advertising company, others |
| After Warranty Service | Video technical support, Online support,Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Brand Name | FANUC |
| Weight | 13k0g |
| Warranty | 1 Year |
| Technical service | Video technical support, Online support,Global official after-sales service |
| Weight (KG) | 130kg |
| Brand | FANUC |
| Axis | 4 axis |
| Payload | 4kg |
| Reach | 800mm |
|
Manipulator during operation
|
Standard
|
| Installation method | Top suspension installation |
| Repeatability | ±0.03mm |
| IP protection |
Standard IP67 and Foundry Plus IP67
|
| Temperature range | + 5°C a) Manipulator during operation Standard (41°F) to + 45°C (113°F) |
|
|
