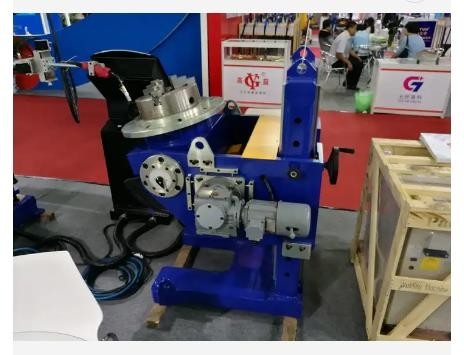

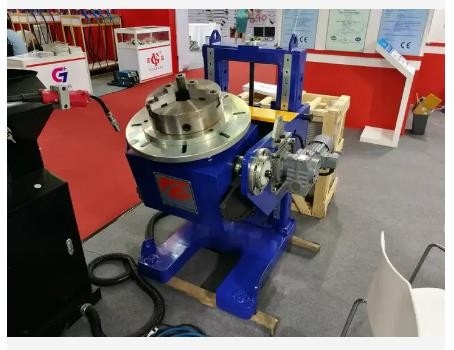

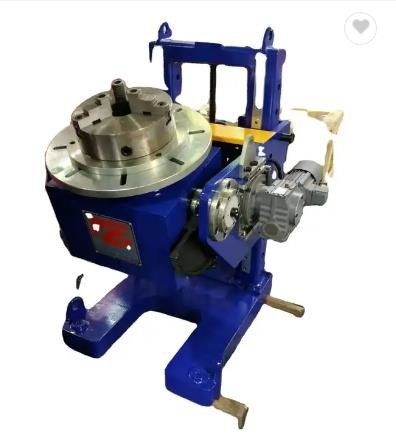

Precision Positioning Turning Table 600KG Servo Weld Positioner for Robot Welding Station
Product Overview
Precision Positioning Turning Table 600KG Servo Weld Positioner for Robot Welding StationServo weld positioner with safety work load 600kg.Table diameter 1000mm with servo driving system for robot welding station
FEATURES AT A GLANCE
Feature
* The servo weld positioner worktable rotation is servo system driving to achieve precision control of overturning &rotating speed .
* Table tilting 0-90 degree, smooth adjustment procedure.
Pendant controller for worktable rotating direction & speed adjustment. With emergency stop button for safetyoperation.
* The servo weld positioner has extention function of linkage control with other equipments to compose as automaticwelding station.
it has the advantages of compact volume, good appearance, light weight and easy operation.
Application industry is including pressure vessel, metallurgy, electrical power, chemical industry, mechanical andmetal
structure
Description
* The servo weld positioner is composed by working table, rotary structure, overturn structure, main frame, electriccontrol system,pendant controller & foot pedal.
lt is mainly used to place the workpiece in the best position for welding and assembling by worktable rotating & tilting
* Servo weld positioner can be used for various automatic or manual welding, butt welding or face welding of pipe, aswell as welding of shafts, discs, barrel, etc.
* Tailor made solution as per demanding acceptable as per request
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
